ON Semiconductor 2SA1405E PNP Transistor

The 2SA1405E is a high-performance PNP transistor from ON Semiconductor, designed to deliver reliable and efficient performance for a variety of electronic applications. This semiconductor device is well-suited for use in power amplification and switching applications, offering a blend of low power dissipation and high current capacity.

Key Features

• Voltage Ratings: The 2SA1405E is equipped with a collector-base voltage (VCBO) of -160V, a collector-emitter voltage (VCEO) of -160V, and an emitter-base voltage (VEBO) of -5V, making it suitable for high-voltage operations.
• Current Ratings: It can handle a continuous collector current (IC) of up to -1.5A, ensuring robust performance for heavy-load conditions.
• Power Dissipation: With a power dissipation (PD) of 25W, it can effectively handle significant levels of power without compromising on performance.
• High Gain Bandwidth Product: The device offers a transition frequency (fT) of 100MHz, which is indicative of its capability to operate efficiently at high-frequency ranges.
• Low Saturation Voltage: The low VCE(sat) ensures reduced voltage drop during saturation, leading to improved energy efficiency.
• Complementary NPN Type: The 2SA1405E has a complementary NPN type, which allows for its use in push-pull and complementary amplifier configurations.

Applications

The 2SA1405E PNP transistor is versatile and can be used in a wide range of applications, including:

• Audio Frequency Amplifier Stages
• Power Regulation Circuits
• DC-DC Converters
• Motor Control Circuits
• Switching Power Supplies

Quality and Reliability

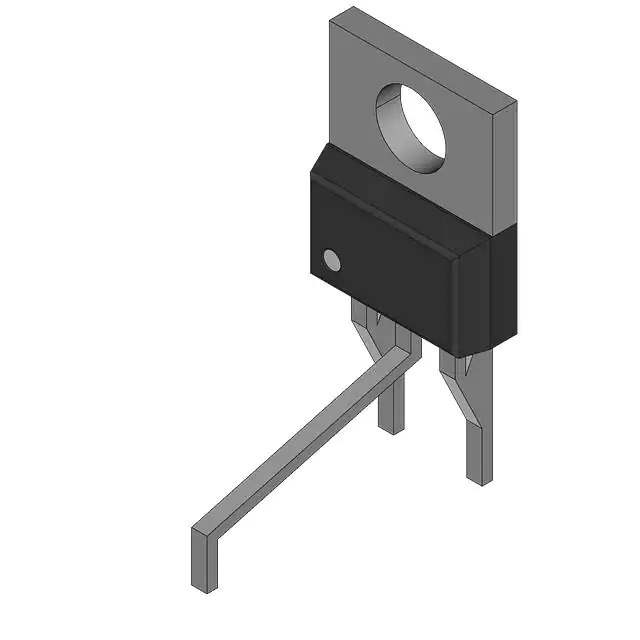

ON Semiconductor is known for its commitment to quality and reliability, and the 2SA1405E is no exception. It is manufactured to meet stringent standards, ensuring stable operation and longevity in the field. The device is available in a TO-220AB package, which is widely accepted for its thermal and mechanical robustness.

Whether you're designing consumer electronics, industrial systems, or automotive applications, the 2SA1405E offers the performance and reliability you need to ensure your products operate at their best.
