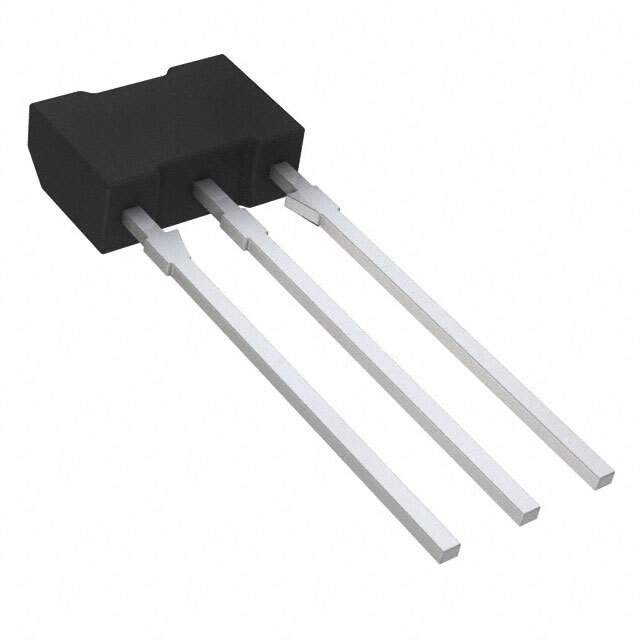

Product Overview: 2SA1768-S by ON Semiconductor

The 2SA1768-S is a high-performance PNP transistor manufactured by ON Semiconductor, a leader in the semiconductor industry. This transistor is designed for use in power amplification and switching applications, providing a combination of low saturation voltage and high current capacity, making it an excellent choice for designers looking for efficient power management solutions.

Key Features

• High Current Capability: The 2SA1768-S is capable of handling high current loads, which is essential for power amplification in various electronic circuits.
• Low Saturation Voltage: This transistor offers low collector-emitter saturation voltage, reducing power loss and improving efficiency in operation.
• Complementary Design: It can be paired with its NPN counterpart, the 2SC4617-S, for a complementary configuration, which is beneficial in push-pull amplifier designs.
• High Power Dissipation: With a high power dissipation capability, the 2SA1768-S can withstand higher levels of power during operation without compromising its performance.
• Compact Package: Encased in a small and lightweight package, this transistor is suitable for space-constrained applications.

Applications

The 2SA1768-S is versatile and can be used in a wide range of applications, such as:

• Audio Power Amplifiers
• Power Supply Circuits
• DC-DC Converters
• Motor Control Circuits
• Switching Regulators

Reliability and Quality

ON Semiconductor is committed to delivering high-quality and reliable components. The 2SA1768-S transistor is no exception and is produced with stringent quality control processes. It is designed to meet or exceed industry standards for performance and reliability, ensuring a long operational life for the devices it powers.

Environmental Compliance

The 2SA1768-S is also environmentally friendly, complying with RoHS (Restriction of Hazardous Substances) directives, which restrict the use of certain hazardous materials in electronic equipment. This commitment to environmental sustainability makes it a suitable choice for eco-conscious applications and manufacturers aiming to reduce their ecological footprint.

In summary, the 2SA1768-S PNP transistor from ON Semiconductor is a robust, efficient, and reliable component ideal for a broad spectrum of power amplification and switching applications.
