Product Overview: ADP3193AJCPZ-RL from ON Semiconductor

The ADP3193AJCPZ-RL is a sophisticated multi-phase synchronous Buck controller designed by ON Semiconductor, a leading provider of semiconductor-based solutions. This precision voltage regulation system is specifically engineered to meet the rigorous power supply requirements of high-performance CPUs, GPUs, and other advanced processing units that demand efficient and reliable power management.

This controller operates with a 3- or 4-phase interleaved architecture, which significantly improves the output voltage regulation and reduces the ripple current in both the input and output capacitors. This results in enhanced system performance and allows for the use of smaller, cost-effective components. The ADP3193A employs an optimal combination of digital and analog circuitry to achieve fast transient response and accurate load-line regulation.

Key features of the ADP3193AJCPZ-RL include:

• Multi-phase power control for exceptional output voltage accuracy.
• Active voltage positioning with adjustable gain to optimize transient response.
• Precision channel-current balancing for even thermal distribution among phases.
• Programmable frequency setpoint to tailor performance to specific applications.
• Differential remote voltage sensing to compensate for IR drops in the power path.
• Overvoltage and undervoltage protection to safeguard the processor and power system.

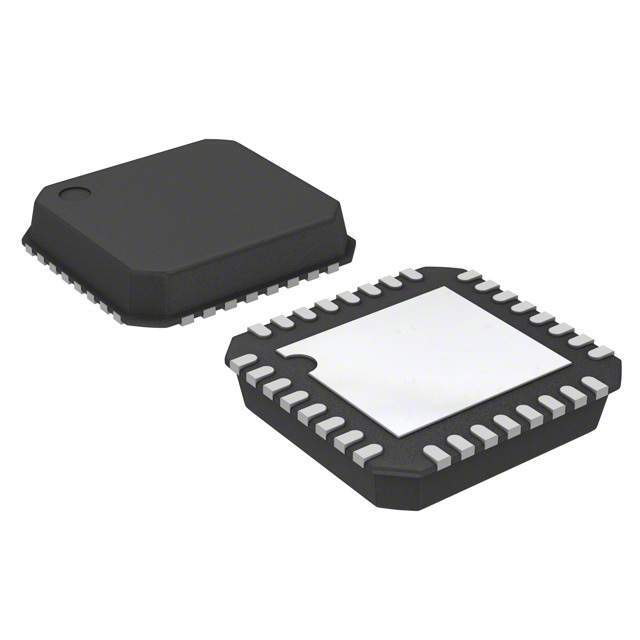

The device is packaged in a compact 32-lead LFCSP (Lead Frame Chip Scale Package) which ensures a small footprint on the PCB while providing excellent thermal performance. The ADP3193AJCPZ-RL is optimized for use in desktop and server motherboards, where space constraints and thermal efficiency are critical considerations.

ON Semiconductor's commitment to innovation is reflected in the ADP3193AJCPZ-RL, offering designers a robust power management solution that is both flexible and easy to implement. With its advanced features and reliable performance, this controller is an excellent choice for powering the next generation of high-speed computing devices.

Whether you are developing systems for personal computing, gaming, or enterprise-level servers, the ADP3193AJCPZ-RL from ON Semiconductor provides the power efficiency, precision, and durability needed to ensure your products perform at their highest potential.
