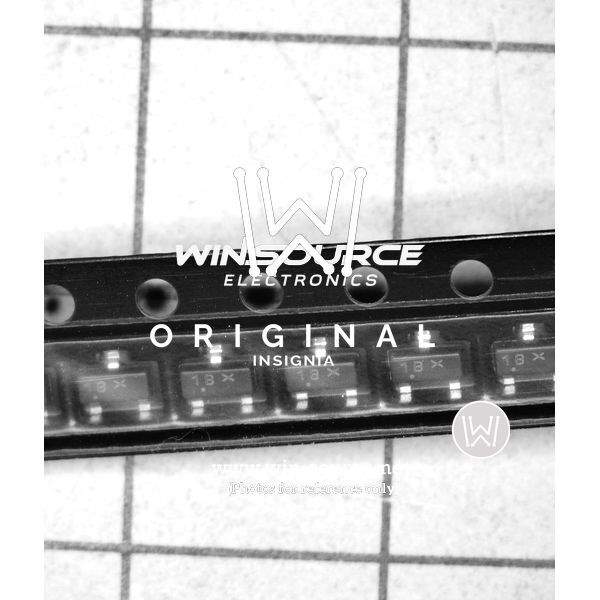

ON Semiconductor BC846BLT3G NPN Bipolar Transistor

The BC846BLT3G is a high-quality NPN bipolar (BJT) transistor from ON Semiconductor, designed for general-purpose amplification and switching applications. This versatile component is housed in a compact SOT-23 package, making it suitable for space-constrained applications across various electronic circuits.

Key Features:

• Device Type: NPN Bipolar Transistor
• Package: SOT-23, a small surface-mounted package for efficient PCB space utilization.
• Configuration: Single
• Collector-Emitter Voltage (Vceo): 65V, providing a good voltage handling capability for a wide range of applications.
• Collector Current (Ic): 100mA, suitable for small signal amplification.
• DC Current Gain (hFE): 420 at 2mA, ensuring high efficiency in current amplification.
• Transition Frequency (fT): 100MHz, making it ideal for high-frequency operations.
• Operating and Storage Junction Temperature Range: -55°C to +150°C, offering reliability in extreme conditions.
• Moisture Sensitivity Level (MSL): 1, indicating that it can be exposed to ambient room conditions for unlimited periods.
• Lead-Free, Halogen-Free and RoHS Compliant: Environmentally friendly and suitable for use in green products.

Applications:

The BC846BLT3G transistor is widely used in a variety of applications due to its general-purpose nature. It is commonly found in:

• Small signal amplification
• Switching applications
• Audio amplifiers
• Signal processing
• Driver stages in hi-fi amplifiers and television circuits
• Portable and consumer electronics
• Linear amplification and switching

ON Semiconductor's BC846BLT3G offers a balance of performance, efficiency, and reliability. Its robust design and versatile characteristics make it a preferred choice for designers and engineers in developing a wide range of electronic products. Whether you are working on a simple hobby project or a complex industrial system, the BC846BLT3G is a reliable component that can meet your needs.
