ON Semiconductor CAT3637HV3-GT2 Product Overview

The CAT3637HV3-GT2 is a high-efficiency, charge pump-based LED driver manufactured by ON Semiconductor, a leading provider of semiconductor-based solutions. This device is specifically designed to drive up to seven LEDs with a constant current for uniform brightness, making it an ideal choice for portable devices where consistent light output and energy efficiency are crucial.

Key Features

• Multiple LED Support: The CAT3637HV3-GT2 can drive up to seven LEDs, which allows for versatile usage in various applications.
• High Efficiency: Utilizes a fractional (1.33x/1.5x) charge pump to ensure high efficiency over a wide range of input voltages.
• Adjustable Output Current: The output current can be set via an external resistor, providing flexibility in controlling the brightness of the LEDs.
• Low Noise Operation: The device operates at a fixed switching frequency of 1MHz, which minimizes noise and avoids interference with RF circuits.
• Thermal Shutdown Protection: Built-in thermal shutdown protection enhances the safety and reliability of the device under extreme conditions.

Applications

The CAT3637HV3-GT2 is suitable for a wide range of applications, particularly those that require compact, efficient, and consistent LED illumination. These applications include, but are not limited to:

• Mobile phones and smartphones
• Portable media players
• Handheld gaming devices
• GPS units
• Backlighting for LCD displays

Technical Specifications

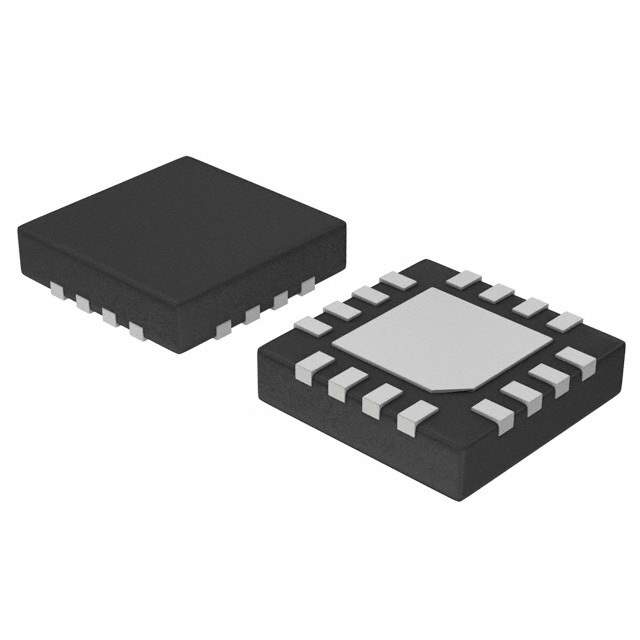

The device operates from a 3V to 5.5V input voltage range, which is compatible with most standard battery technologies used in portable electronics. The CAT3637HV3-GT2 offers excellent thermal performance in a compact 3mm x 3mm TQFN package, making it easy to integrate into space-constrained designs.

In summary, the CAT3637HV3-GT2 from ON Semiconductor is a versatile, high-efficiency LED driver that offers designers the flexibility and performance needed to create advanced lighting solutions for portable electronic devices.
