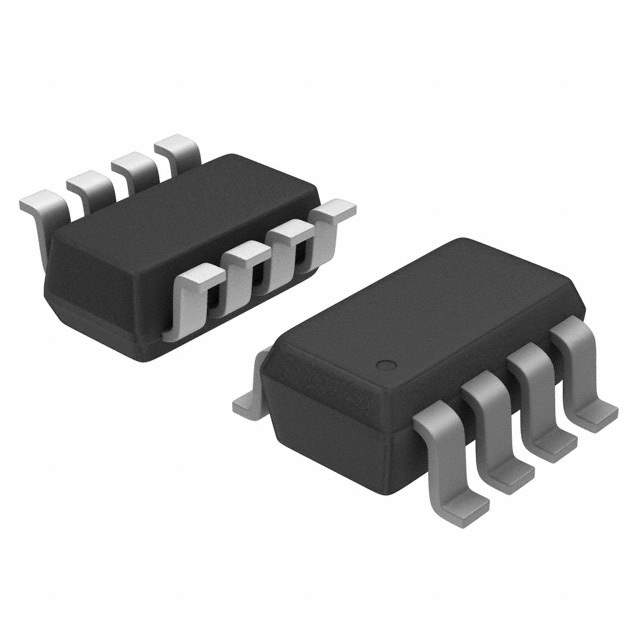

ON Semiconductor CAT5171TBI-50GT3 Digital Potentiometer

The ON Semiconductor CAT5171TBI-50GT3 is a high-performance digital potentiometer that offers a perfect solution for precision resistance adjustments in a wide range of electronic applications. This compact and versatile component is designed to provide the reliability and functionality required for fine-tuning resistance values in circuits, allowing for seamless integration into various electronic systems.

The CAT5171TBI-50GT3 is a single-channel digital potentiometer with a resistance value of 50kΩ. It features a 256-position linear taper, which provides a smooth transition between steps and ensures precise adjustments. The device operates from a wide supply voltage range of 2.5V to 6V, making it suitable for both low-voltage and standard applications.

One of the key attributes of this digital potentiometer is its non-volatile memory (EEPROM), which allows the resistance setting to be stored and retained even after power is removed. This ensures that the device will maintain its last programmed resistance value upon the next power-up, providing consistent performance and reducing the need for recalibration.

The CAT5171TBI-50GT3 is controlled via a simple up/down serial interface, which is compatible with most microcontrollers. This interface provides easy integration into existing designs and allows for digital control over the resistance adjustments without the need for complex programming.

With its extended temperature range of -40°C to +85°C, the CAT5171TBI-50GT3 is suited for use in a variety of environments, including industrial and automotive applications. Its small 3mm x 3mm 8-lead TDFN package makes it ideal for space-constrained applications where board real estate is at a premium.

Whether it's used for calibration, signal conditioning, or as a part of a feedback control loop, the ON Semiconductor CAT5171TBI-50GT3 stands out as a durable and precise digital potentiometer. Its robust design and ease of use make it an excellent choice for designers looking to add reliable and adjustable resistance to their electronic projects.
