The ON Semiconductor CM1425-03CP is a state-of-the-art EMI filtering and ESD protection device designed to safeguard high-speed data interfaces from unwanted electromagnetic interference and harmful electrostatic discharges. This compact, high-performance component is an essential solution for maintaining signal integrity and protecting sensitive electronics in a wide range of applications.

Key Features

• Integrated EMI filtering: The CM1425-03CP offers built-in EMI filtering capabilities, effectively reducing the noise on data lines which helps in maintaining signal clarity and preventing performance degradation.
• ESD protection: This device provides robust ESD protection to IEC61000-4-2 Level 4 standards, safeguarding connected electronic circuits from electrostatic discharges as high as ±15kV (air discharge) and ±8kV (contact discharge).
• Low pass filter design: With its low pass filter architecture, the CM1425-03CP ensures minimal signal distortion and attenuation, making it ideal for high-speed data applications.

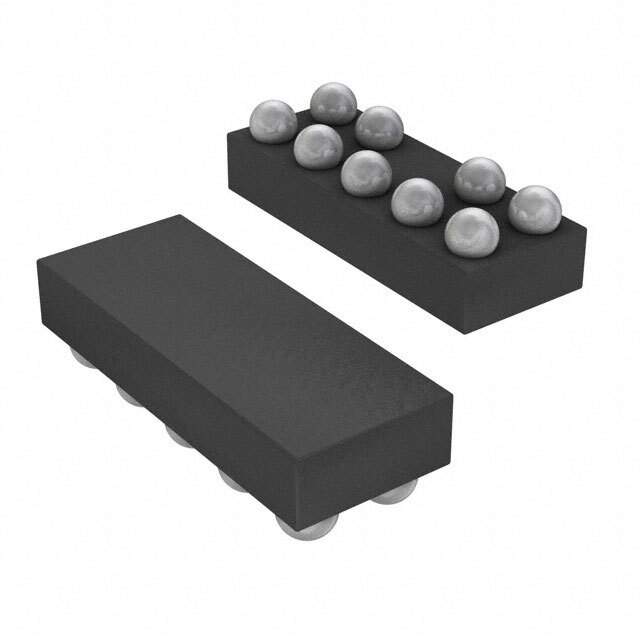

• Small package footprint: The compact CSP (Chip Scale Package) design allows for space-saving on PCBs, which is crucial for modern, miniaturized electronic devices.

Applications

The CM1425-03CP is versatile and can be used in a variety of applications where data line protection and signal integrity are of paramount importance. These include:

• Mobile handsets and smartphones
• Portable electronics
• USB interfaces
• High-speed data lines
• Computers and peripherals

Technical Specifications

The CM1425-03CP is designed to meet the rigorous demands of modern electronics with the following specifications:

• Channels: 3-line protection
• Clamping Voltage: Low clamping voltage
• Insertion Loss: Low insertion loss at high frequencies
• Operating Temperature Range: -40°C to +85°C
• Package: Lead-free, RoHS compliant CSP

With its combination of EMI filtering and ESD protection capabilities, the ON Semiconductor CM1425-03CP is an optimal choice for designers looking to enhance the reliability and performance of their high-speed data systems.
