The CM1454-08CP from ON Semiconductor is a robust and versatile low-capacitance ESD protection array designed to safeguard high-speed data lines from electrostatic discharge (ESD) and other transient voltage events. This component is ideal for applications that require reliable protection without compromising signal integrity, making it a perfect choice for consumer electronics, telecommunications, and computing devices.

Key Features

• ESD Protection: The CM1454-08CP offers exceptional ESD protection that meets IEC61000-4-2 Level 4 standards, ensuring that devices are shielded from the most severe ESD events.
• Low Capacitance: With a low loading capacitance of just 0.6pF per channel, this component preserves signal integrity for high-speed data lines, such as USB 2.0, HDMI, and LVDS interfaces.
• Multiple Channels: The device features eight channels of ESD protection, making it suitable for multi-line applications and providing a compact solution for space-constrained designs.
• Bidirectional Clamping: Bidirectional transient voltage suppression ensures protection for data lines that may experience voltage surges in either direction.
• Flow-Through Design: The CM1454-08CP's flow-through design simplifies PCB layout and reduces signal distortion by allowing signals to pass directly through the device with minimal impedance changes.

Applications

The CM1454-08CP is engineered to provide ESD protection in a wide range of applications. It is particularly well-suited for:

• Mobile Phones and Smart Devices
• Portable Electronics
• Personal Computing Devices
• Set-Top Boxes and Digital TVs
• USB Peripherals and Interfaces

Product Specifications

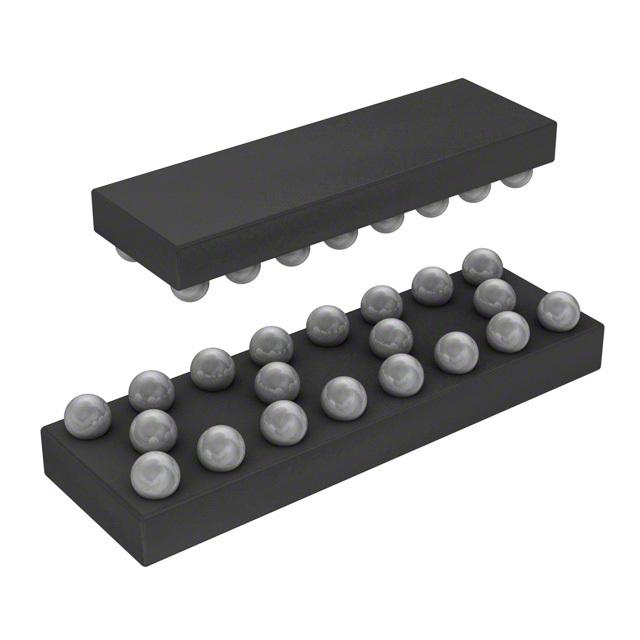

ON Semiconductor's CM1454-08CP is available in a compact, lead-free package that complies with RoHS standards. The device's operating temperature range is from -40°C to +85°C, accommodating a broad spectrum of environmental conditions. Additionally, it comes with a low standby current, making it an energy-efficient choice for modern electronics.

For designers and engineers looking for a reliable ESD protection solution that does not compromise on performance, the CM1454-08CP from ON Semiconductor is an excellent option that combines high-level protection with design flexibility and efficiency.
