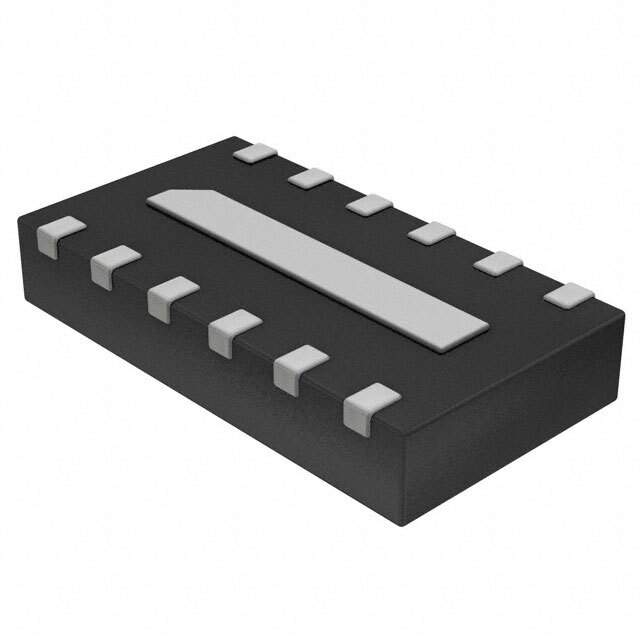

The CM1692-06DE from ON Semiconductor is a state-of-the-art ESD (Electrostatic Discharge) protection device, meticulously designed to shield sensitive electronic components from the potentially damaging effects of electrostatic discharge events. This robust component is highly recommended for applications that require reliable and continuous protection against ESD without compromising signal integrity.

Key Features

• ESD Protection: Offers exceptional ESD protection, meeting IEC61000-4-2 Level 4 standards, withstanding ESD strikes of up to ±15kV (air discharge) and ±8kV (contact discharge).
• Low Capacitance: The device features ultra-low loading capacitance, making it ideal for high-speed data lines where maintaining signal integrity is crucial.
• Multi-Line Protection: With its 6-channel configuration, the CM1692-06DE can protect multiple lines using a single device, reducing board space and simplifying design.
• Low Clamping Voltage: The low dynamic resistance and clamping voltage ensure minimal impact on the protected circuit during an ESD event.
• Compact Package: Housed in a space-saving SOT-23-6 package, this device is suitable for compact electronic assemblies.

Applications

The CM1692-06DE is versatile and can be implemented in a wide range of applications, including:

• Mobile Handsets
• Portable Electronics
• USB Interfaces
• Computer Peripherals
• Consumer Electronics

Reliability and Quality

ON Semiconductor is renowned for its commitment to quality and reliability. The CM1692-06DE is no exception, undergoing rigorous testing to ensure it meets the highest industry standards for ESD protection. Users can rely on this device to provide consistent performance and safeguard their valuable electronic systems.

Conclusion

With its robust ESD protection capabilities, low capacitance, and multi-line coverage, the CM1692-06DE from ON Semiconductor is an excellent choice for designers looking to enhance the durability and longevity of their electronic products. Its compact form factor and high-performance characteristics make it an invaluable component in any ESD-sensitive application.
