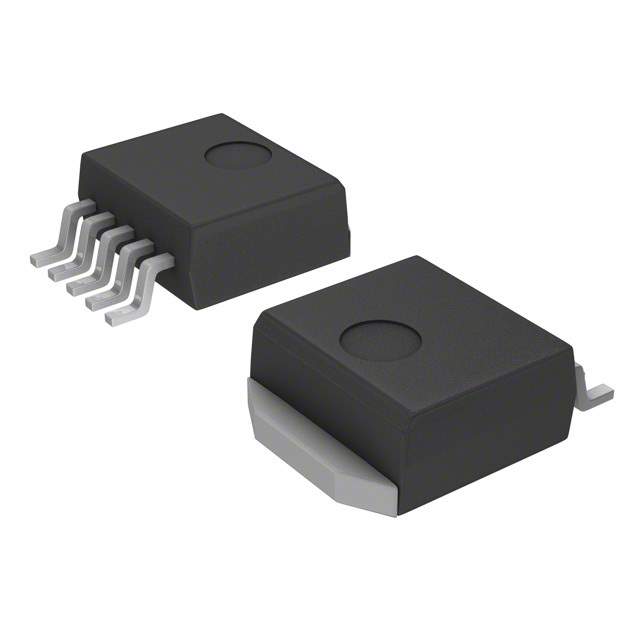

ON Semiconductor CS5233-3GDPR5 Voltage Regulator

The CS5233-3GDPR5 from ON Semiconductor is a precision, fixed output, low dropout voltage regulator designed to deliver a continuous 3A current with a fixed output voltage of 3.3V. This high-performance component is ideal for a variety of applications, including but not limited to, personal computers, embedded systems, and other electronic devices that require a stable and reliable power supply.

Constructed with an advanced semiconductor process, the CS5233-3GDPR5 ensures high accuracy, low dropout voltage, and low ground current, which makes it an excellent choice for energy-sensitive applications. The device features a typical dropout voltage of just 1.14V at 3A, providing efficient operation even in low-voltage environments. This helps in minimizing power loss and heat generation, thereby improving the overall system performance and reliability.

The regulator also incorporates several protective features to ensure the safety and longevity of both the device and the system it powers. These include over-current protection, thermal shutdown, and a reversed-battery protection mechanism. The over-current protection safeguards the device against excessive currents, while the thermal shutdown feature prevents overheating by turning off the device when the junction temperature exceeds safe limits. The reversed-battery protection ensures that the device and the system are not damaged in case of incorrect battery installation.

Available in a compact D2PAK-5 package, the CS5233-3GDPR5 is designed for surface mount technology, allowing for efficient use of board space and simplified assembly processes. This package is also known for its excellent power dissipation characteristics, which is crucial for maintaining stability and performance in applications where space is at a premium.

In summary, the CS5233-3GDPR5 from ON Semiconductor is a robust, high-performance voltage regulator that offers a combination of precision, efficiency, and protection. It is an ideal solution for designers looking to enhance the power management capabilities of their next-generation electronic products.
