ON Semiconductor ESD11L5.0DT5G - ESD Protection Diode

The ON Semiconductor ESD11L5.0DT5G is a state-of-the-art ESD protection diode designed to safeguard high-speed data lines and I/O ports from electrostatic discharge (ESD) that can cause irreparable damage to sensitive electronic components. This compact and robust diode is an ideal choice for a wide range of applications, including mobile devices, portable electronics, and communication systems where space is at a premium and protection from ESD is critical.

The ESD11L5.0DT5G features a low clamping voltage and a low capacitance design, making it particularly well-suited for protecting voltage-sensitive components that are connected to high-speed data and signal lines. This ensures that the integrity of the data is maintained while providing the necessary protection against ESD events. The diode is capable of withstanding ESD strikes of ±20 kV, adhering to the IEC61000-4-2 standard, which is a testament to its robustness and reliability.

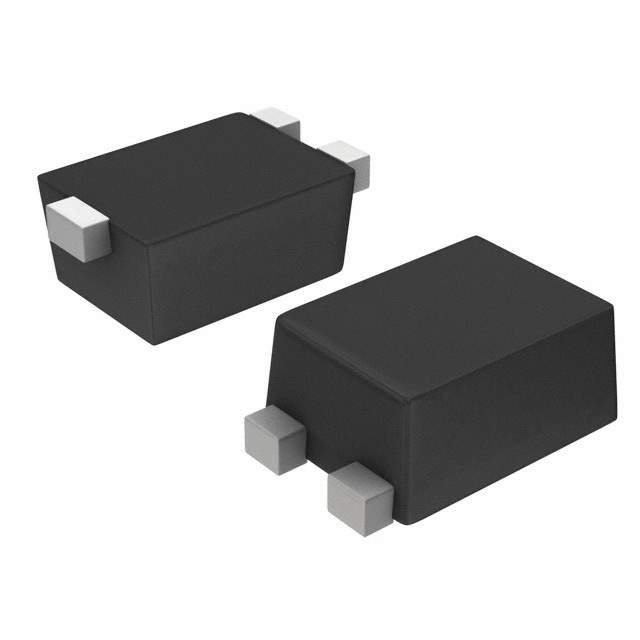

Constructed in a tiny SOD-923 package, the ESD11L5.0DT5G offers designers a very small footprint on PCBs, allowing for greater design flexibility and the conservation of board space. This small package does not compromise on performance, as the diode provides a fast response time to ESD strikes, ensuring quick and effective protection for connected circuits.

• Low Capacitance: The device features a low loading capacitance, which is essential for maintaining signal integrity in high-speed applications.
• Low Clamping Voltage: It offers a low clamping voltage during an ESD event, which helps to protect sensitive circuitry from high-voltage transients.
• High ESD Protection: With its ability to withstand ESD strikes of ±20 kV, the diode provides robust protection for electronic components.
• Compact Package: The small SOD-923 package enables the conservation of valuable PCB space while providing high-performance ESD protection.

Whether you're designing for consumer electronics, USB interfaces, or other high-speed data applications, the ON Semiconductor ESD11L5.0DT5G is an excellent choice for integrating ESD protection into your system. Its combination of low capacitance, fast response time, and high ESD withstand capability ensures that your products are protected against the common and potentially destructive effects of electrostatic discharge.
