The FAN2306MPX from ON Semiconductor is a high-performance, synchronous rectified step-down converter integrated with a dual-channel, capable of delivering a continuous 6A output current to each channel. This advanced power solution is designed for efficiency and reliability, making it an ideal choice for a wide range of applications, including computing, networking, and telecommunications systems.

Key Features

• High Efficiency: The FAN2306MPX boasts an efficient design with synchronous rectification, ensuring minimal power loss during operation and maximizing power delivery to the load.
• Dual 6A Output: Each of the two channels can continuously supply up to 6A of current, providing robust power for demanding applications.
• Wide Input Voltage Range: This converter operates over a broad input voltage range from 4.5V to 18V, accommodating various power supply scenarios.
• Adjustable Output Voltage: The output voltage can be adjusted from 0.6V to the input voltage, offering versatility to match specific voltage requirements of the load.
• Protection Features: It includes over-current protection, over-temperature protection, and under-voltage lockout, ensuring the safety and longevity of both the converter and the system it powers.

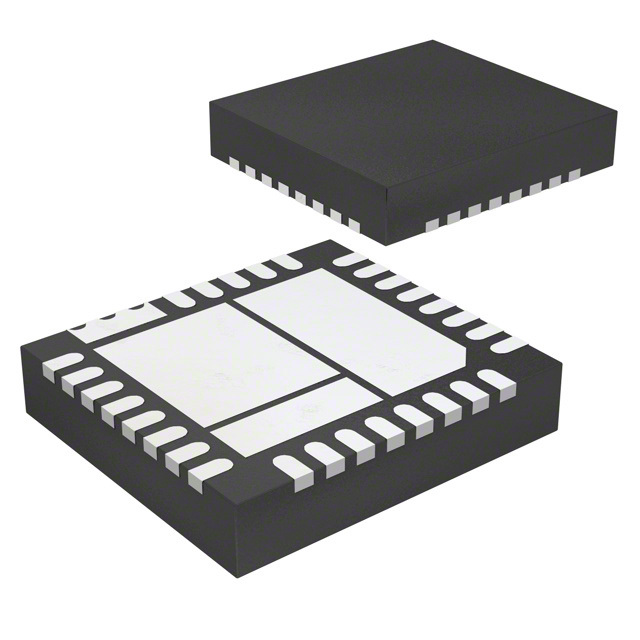

• Compact Size: The FAN2306MPX comes in a compact 5x5 mm QFN package, which is ideal for space-constrained applications.

Applications

• Computing Systems
• Networking Equipment
• Telecommunications Infrastructure
• Industrial and Medical Applications
• Point of Load (POL) Conversions

The FAN2306MPX is a testament to ON Semiconductor's commitment to providing advanced power management solutions that meet the evolving needs of modern electronic systems. With its combination of efficiency, power density, and protection features, the FAN2306MPX is a reliable choice for engineers looking to optimize their power systems for performance and durability.
