Products specifications

Manufacturer ON Semiconductor
Packaging Tube
IGBT Type Trench Field Stop
Voltage - Collector Emitter Breakdown (Maximum) 650V
Current - Collector Pulsed (Icm) 170A
Vce(on) (Maximum) at Vge, Ic 1.88V at 15V, 30A
Power - Max 30W
Input Type Standard
Gate Charge 40.3nC
Td (on/off) at 25°C 11.2ns/40.8ns
Test Condition 400V, 30A, 5Ohm, 15V
Temperature Range - Operating -55°C ~ 150°C
Mounting Style Through Hole

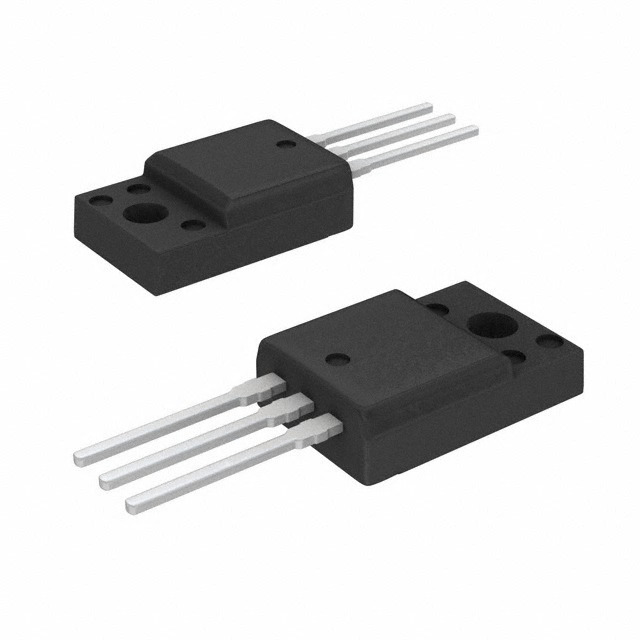

Manufacturer Package TO-220-3 Full Pack
Supplier Device Package TO-220F
Manufacturer Pack Quantity 1,000
MSL Level 1 (Unlimited)
Popularity Medium
Supply and Demand Status Balance
Win Source Part Number 804979-FGPF4565
Ultra Librarian 3D Model Ultra Librarian FGPF4565 CAD Model

Description

ON Semiconductor FGPF4565 IGBT Overview

The ON Semiconductor FGPF4565 is a cutting-edge Insulated Gate Bipolar Transistor (IGBT) designed for a range of power applications. This IGBT is engineered to offer a high level of efficiency and reliability, making it an ideal choice for designers looking to improve the performance of their power management systems.

Key Features

  • High Current Capability: The FGPF4565 is capable of handling high continuous collector currents, ensuring robust performance for demanding applications.
  • Low Saturation Voltage: This IGBT features a low collector-emitter saturation voltage, which reduces power dissipation and improves efficiency.
  • Fast Switching Speed: With its fast switching characteristics, the FGPF4565 minimizes switching losses and enhances overall system response.
  • Co-Packaged Free Wheeling Diode: The inclusion of a co-packaged free-wheeling diode provides additional protection against reverse voltage and reduces component count in circuit designs.

Applications

The FGPF4565 is versatile and can be used in a wide array of applications, including:

  • Switch Mode Power Supplies (SMPS)
  • Uninterruptible Power Supplies (UPS)
  • Motor Drives
  • Power Factor Correction (PFC) circuits
  • Inductive Heating
  • Inverter circuits

Technical Specifications

The FGPF4565 boasts impressive technical specifications, including:

  • Collector-Emitter Voltage (Vce): 650V
  • Continuous Collector Current (Ic): 45A
  • Power Dissipation (Pd): 70W
  • Operating Junction Temperature Range: -55°C to +175°C

Quality and Reliability

ON Semiconductor is committed to delivering high-quality products. The FGPF4565 IGBT has been rigorously tested to meet stringent industry standards for quality and reliability, ensuring long-term performance in critical applications.

Environmental Considerations

In alignment with global environmental standards, the FGPF4565 is designed with eco-friendly considerations. It is compliant with RoHS directives, which means it is free from hazardous substances like lead, making it a safer choice for electronic equipment.

Overall, the ON Semiconductor FGPF4565 IGBT is a powerful component that offers an optimal balance of efficiency, performance, and reliability for advanced power management solutions.
