ON Semiconductor FOD3180TV High-Speed Gate Drive Optocoupler

The FOD3180TV from ON Semiconductor is a high-speed gate drive optocoupler designed to meet the stringent requirements of isolating and driving high-speed power MOSFETs and IGBTs. This robust component is an essential building block in a variety of power applications, including motor drives, power inverters, and switching power supplies.

Featuring a high peak output current of 2A and fast propagation delays, the FOD3180TV is engineered to deliver efficient and reliable performance. It ensures accurate control of the power devices, which is critical for maintaining efficiency and protecting the system from potential damage due to misoperation.

The device incorporates an LED optically coupled to an integrated high-gain photo detector. The insulation between the input and output is provided by a high dielectric insulation voltage of 5,000Vrms, which guarantees reliable electrical isolation, thus enhancing system safety by preventing ground loops and voltage spikes from affecting the control side of the circuit.

One of the key features of the FOD3180TV is its under-voltage lock-out protection (UVLO) with hysteresis. This function ensures that the gate drive output is only enabled when the supply voltage is sufficient to properly drive the power MOSFET or IGBT, preventing insufficient gate drive and ensuring the safe operation of the power device.

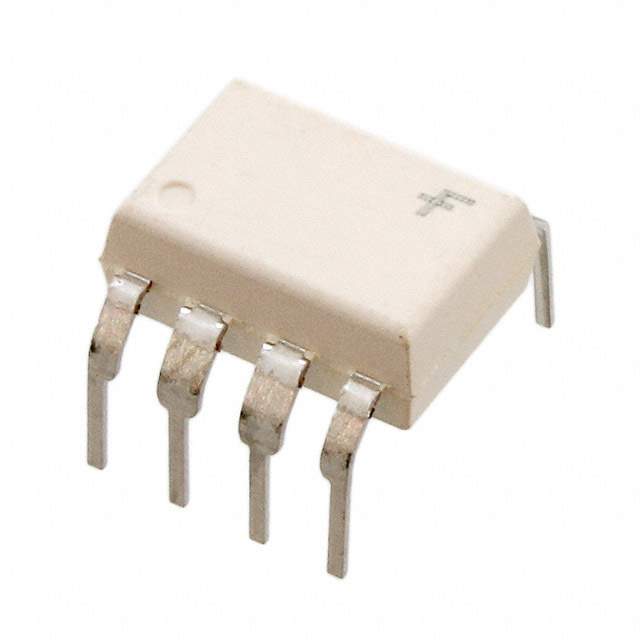

With a wide operating temperature range of -40°C to +100°C, the FOD3180TV is suitable for harsh industrial environments. Additionally, the optocoupler comes in a compact 8-pin DIP package, which is lead-free and RoHS compliant, ensuring that it meets the latest environmental standards for electronic components.

Overall, the ON Semiconductor FOD3180TV is a reliable and efficient solution for designers looking to optimize their high-speed switching applications. Its ability to provide strong electrical isolation alongside fast and powerful drive capabilities makes it an excellent choice for modern power management systems.

Technical specifications and datasheets are available for engineers and designers to ensure that the FOD3180TV can be seamlessly integrated into their designs, delivering both performance and peace of mind.
