Products specifications

Categories Isolators
Manufacturer ON Semiconductor
Packaging Tube
Technology Optical Coupling
Voltage - Isolation 4243Vrms
Common Mode Transient Immunity (Minimum) 35kV/μs
Propagation Delay tpLH / tpHL (Maximum) 500ns, 500ns
Pulse Width Distortion (Maximum) 300ns
Rise / Fall Time 34ns, 34ns
Current - Output High, Low 2.5A, 2.5A
Current - Peak Output 3A
Voltage - Output Supply 15V ~ 30V
Temperature Range - Operating -40°C ~ 100°C
Mounting Style SMD
Manufacturer Package 16-SOIC
Supplier Device Package 16-SOIC
Approvals UL
Manufacturer Pack Quantity 1,000
MSL Level 1 (Unlimited)
Win Source Part Number 1175019-FOD8318
Manufacturer Homepage www.fairchildsemi.com
Popularity Medium
Supply and Demand Status Limited
Ultra Librarian 3D Model Ultra Librarian FOD8318 CAD Model

Description

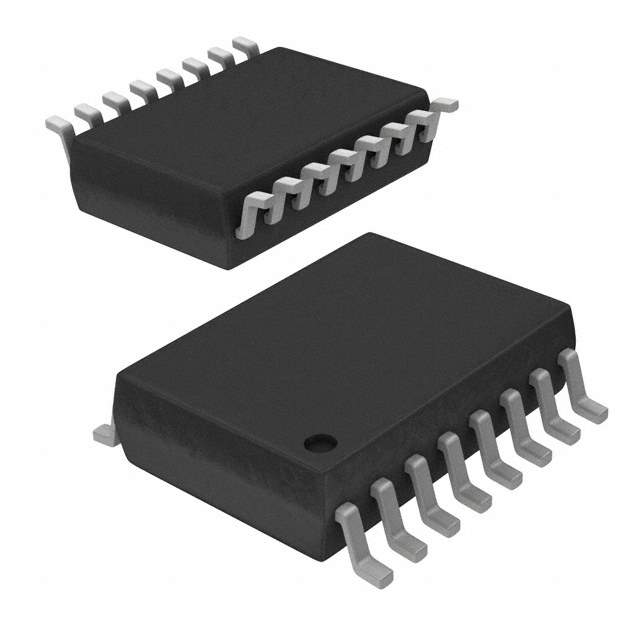

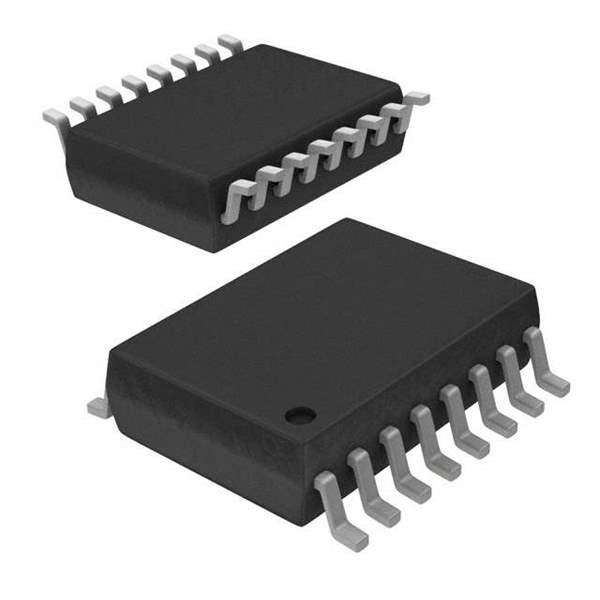

Introducing the FOD8318 Smart Gate Driver Optocoupler from ON Semiconductor

The FOD8318 is a state-of-the-art smart gate driver optocoupler, meticulously designed by ON Semiconductor to provide an exceptional solution for driving IGBTs and power MOSFETs in a variety of applications. This advanced device integrates critical protective features to ensure reliable operation and enhanced performance of your power systems.

Optimized Performance and Protection

The FOD8318 offers an output current of 2.5A, making it suitable for high-power applications. It incorporates an active Miller clamp to prevent spurious gate turn-on, which is essential for maintaining stability and efficiency in power circuits. Additionally, the device features under-voltage lock-out (UVLO) protection for both the high-side and low-side, ensuring that the gates are only driven when there is sufficient voltage to do so properly.

High Noise Immunity

Designed with a high common-mode rejection (CMR) of 35kV/µs at VCM = 1500V, the FOD8318 ensures stable operation in electrically noisy environments. This makes it an ideal choice for industrial applications where electromagnetic interference (EMI) can be a significant concern, such as motor drives, renewable energy inverters, and power supplies.

Flexible Integration

The FOD8318 is housed in a compact 16-pin SOIC package, providing a space-efficient solution without compromising on functionality. Its lead-free and RoHS compliant construction aligns with current environmental standards, making it a responsible choice for modern electronic designs.

Key Features at a Glance:

  • 2.5A maximum peak output current
  • Active Miller clamp for added stability
  • Under-voltage lock-out (UVLO) for both high-side and low-side
  • High common-mode rejection (CMR) of 35kV/µs
  • Compact 16-pin SOIC package
  • Lead-free and RoHS compliant

In conclusion, the FOD8318 from ON Semiconductor stands as a robust, feature-rich smart gate driver optocoupler that is engineered to meet the stringent demands of high-power switching applications. Its integration of protective features, high noise immunity, and compact form factor makes it a top-tier component for ensuring efficient and reliable operation in your power management systems.
