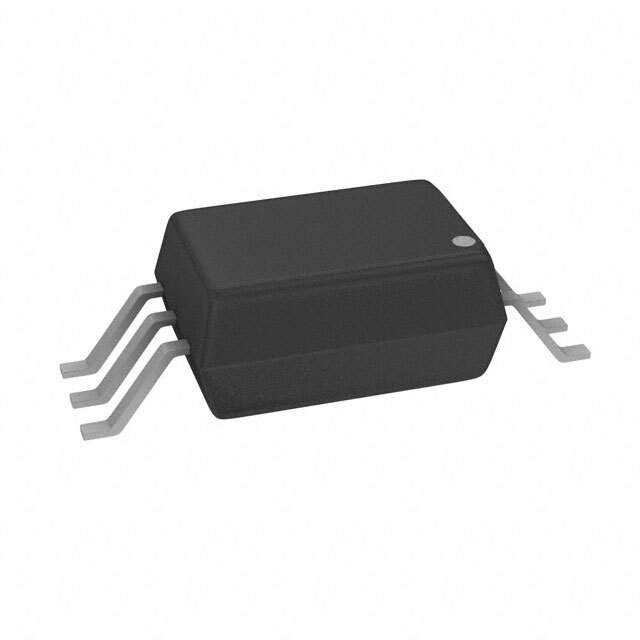

The FOD8343R2 from ON Semiconductor is a state-of-the-art optocoupler designed for a wide array of applications requiring high voltage insulation and high-speed data transmission. With its robust design and advanced features, this optocoupler ensures reliable performance in challenging environments.

Key Features

• High Data Rate Transfer: Capable of transferring data at 10 Mbps, the FOD8343R2 is well-suited for high-speed signal isolation applications.
• High Voltage Isolation: With an isolation voltage of 3750 Vrms, this optocoupler provides excellent electrical insulation between input and output, making it ideal for safety-critical applications.
• Low Propagation Delay: The device boasts a low propagation delay, which is crucial for time-sensitive signal processing and control systems.
• CMR (Common Mode Rejection): High CMR of 35kV/µs at VCM = 1500V ensures stable operation in the presence of high common mode noise.
• Temperature Range: Operating temperature range from -40°C to +100°C allows for use in a variety of environments.

Applications

The FOD8343R2 is versatile and can be used in a range of applications, such as:

• Industrial communications
• Isolated CAN / LIN bus interfaces
• Isolated ADCs and DACs
• Switching power supplies
• Isolated RS232, RS485, RS422 interfaces

Reliability and Compliance

ON Semiconductor's commitment to quality ensures that the FOD8343R2 optocoupler meets stringent industry standards for reliability and performance. It is compliant with regulatory standards such as UL, CSA, and IEC/EN/DIN EN 60747-5-5, providing users with confidence in its safety and effectiveness.

Conclusion

The ON Semiconductor FOD8343R2 is an exceptional choice for designers looking for a high-speed, high-isolation optocoupler. Its combination of speed, reliability, and robustness makes it an essential component for advanced electronic systems where performance cannot be compromised.
