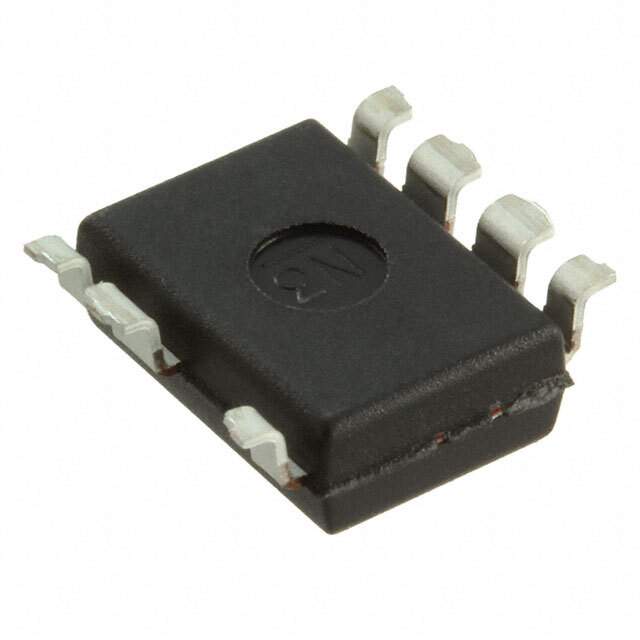

The ON Semiconductor FSL336LRLX is a high-performance integrated circuit designed to provide reliable and efficient power management solutions. This versatile IC is well-suited for a wide range of applications, including power supplies, converters, and LED drivers, making it an essential component for modern electronic devices.

Key Features

• Green Mode Fairchild Power Switch (FPS): The FSL336LRLX incorporates Fairchild's proprietary green mode function, which provides off-time modulation to linearly decrease the switching frequency under light-load conditions. This feature significantly reduces standby power consumption and improves efficiency.
• High-Voltage Startup: This IC includes a high-voltage startup circuit that allows the power supply to start up under full-load conditions without the need for an external resistor, reducing power loss and improving system reliability.
• Burst Mode Operation: In order to minimize power loss in standby mode, the FSL336LRLX is capable of burst mode operation, which reduces the switching frequency and cuts down on unnecessary energy expenditure.
• Over-Voltage Protection (OVP): The device features built-in over-voltage protection that safeguards the system from damage due to excessive voltage conditions.
• Overload Protection (OLP) and Over-Temperature Protection (OTP): These protection features ensure the IC and the system it controls operate within safe limits, preventing damage from overload and excessive temperature conditions.

Applications

The FSL336LRLX is ideal for a variety of applications, including:

• Switch Mode Power Supplies (SMPS)
• AC-DC Adapters for Chargers
• Open-Frame Switching Power Supplies
• LED Lighting Drivers

Package and Reliability

Enclosed in a compact package, the FSL336LRLX is designed for space-constrained applications. It is manufactured with ON Semiconductor's commitment to quality and reliability, ensuring a long operational lifespan and consistent performance.

Environmental Compliance

ON Semiconductor is dedicated to environmental stewardship. The FSL336LRLX is compliant with RoHS regulations, making it an environmentally friendly choice for manufacturers looking to reduce their ecological footprint.
