ON Semiconductor FSQ0765RWDTU: A Robust Power Switch for Efficient Power Supply Solutions

The FSQ0765RWDTU is a state-of-the-art power switch component from ON Semiconductor, designed to enhance the performance and reliability of power supply systems. This innovative product integrates a quasi-resonant topology with ON Semiconductor's proprietary green-mode function, providing a highly efficient solution for switched-mode power supplies (SMPS).

Key Features and Benefits

• High-Efficiency Operation: The FSQ0765RWDTU employs a quasi-resonant switching technique that minimizes switching losses, allowing for greater efficiency, especially in low-power standby modes.
• Green-Mode Function: With the green-mode feature, the power switch offers excellent power-saving capabilities by reducing the switching frequency under light-load conditions. This results in lower standby power consumption, making it an eco-friendly choice for modern electronic applications.
• Built-in Protection Features: The device includes various protection mechanisms such as over-voltage protection (OVP), over-current protection (OCP), and thermal shutdown (TSD). These features ensure the safety and longevity of the power supply and the end product.
• Wide Operating Voltage Range: The FSQ0765RWDTU is designed to operate over a broad voltage range, accommodating various applications and ensuring consistent performance under fluctuating input conditions.
• Flexible Application Scope: This power switch is suitable for a diverse set of applications, including LCD monitors, TVs, DVD players, and other low-power consumer electronics, as well as industrial and office automation equipment.

Technical Specifications

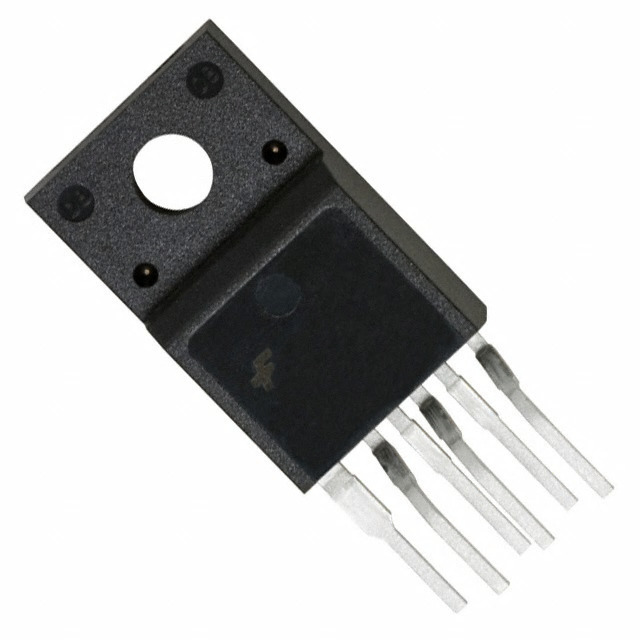

The FSQ0765RWDTU features a maximum output power of 70W at 230VAC and 56W at 85-265VAC in an open-frame design. It is packaged in a TO-220F-6L form factor, which provides ample heat dissipation and robustness for various environmental conditions.

With its advanced design and integrated features, the FSQ0765RWDTU from ON Semiconductor is a top choice for designers looking to create compact, energy-efficient power supply units without compromising on performance or safety. It is a testament to ON Semiconductor's commitment to providing innovative solutions that meet the evolving needs of the electronics industry.
