Products specifications Report Issue?

Category Integrated Circuits(ICs)
Family PMIC - Full,Half - Bridge Drivers
Manufacturer ON Semiconductor
Win Source Part Number 293976-LB1843
Popularity Medium
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian LB1843 CAD Model

Description

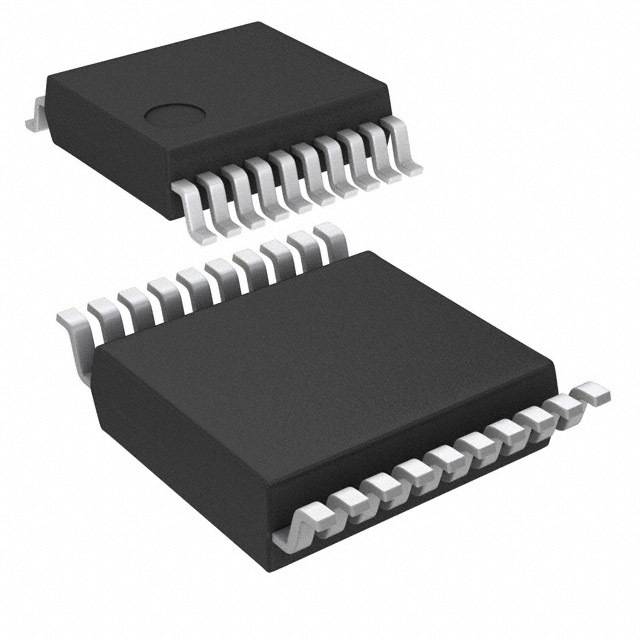

Product Overview: LB1843 Motor Driver IC

The LB1843 from ON Semiconductor is a high-performance motor driver IC designed to handle low-voltage stepper and DC motors. This versatile component is ideal for a broad range of applications, including office automation machines, home appliances, and battery-powered devices. The LB1843 provides a compact and efficient solution for motor control, ensuring smooth and reliable operation.

Key Features

  • Operating Voltage Range: The LB1843 operates within a voltage range of 2.5V to 10V, making it suitable for low-voltage applications and compatible with a variety of power sources.
  • Output Current: It can deliver an output current of up to 400mA, providing sufficient drive capability for small to medium-sized motors.
  • Low Saturation Voltage: The device features a low saturation voltage, which minimizes power loss and improves efficiency when driving motors.
  • Direct PWM Control: The LB1843 supports direct PWM control, which allows for precise speed regulation of the motor, enhancing the performance of the system.
  • Built-in Flywheel Diodes: Integrated flywheel diodes provide protection against inductive voltage spikes, which can occur when the motor is turned off or when the direction of current flow is changed rapidly.
  • Compact Package: Available in a small package, the LB1843 saves space on the PCB, which is crucial for portable and space-constrained applications.

Applications

The LB1843 is suitable for a variety of applications where efficient motor control is required. Its low-voltage operation and high efficiency make it an excellent choice for portable devices. It can be used in:

  • Battery-powered consumer products
  • Office automation equipment such as printers and scanners
  • Small home appliances
  • Robotics and DIY projects

Conclusion

ON Semiconductor's LB1843 motor driver IC offers a blend of performance, efficiency, and versatility, making it a preferred choice for designers looking for a reliable motor control solution. Its ability to drive both stepper and DC motors, along with its low power consumption and compact form factor, ensures that it can meet the requirements of a wide array of motor-driven applications.
