The CSD97395Q4MT is a high-performance, synchronous buck NexFET™ power block specifically designed by Texas Instruments to deliver exceptional power density and efficiency for a variety of applications. This advanced component integrates two power MOSFETs into a single, compact package, simplifying the design and reducing the footprint on the PCB.

With an optimized design for 5V gate drive applications, this power block operates over a wide input voltage range and is ideal for use in next-generation high-density power solutions. Its exceptional thermal performance is attributed to the unique stacked-die construction, which significantly enhances power dissipation and improves overall efficiency.

The CSD97395Q4MT is designed to support a maximum continuous current of 40A, making it suitable for high-current power supplies. Its low on-resistance ensures minimal conduction losses, while the advanced packaging technology reduces parasitic inductances, further enhancing its switching performance.

This power block is compatible with a variety of control methods, including voltage-mode, current-mode, and synchronous buck topologies. This versatility makes it an excellent choice for powering CPUs, GPUs, ASICs, and other high-performance integrated circuits that require precise and efficient power management.

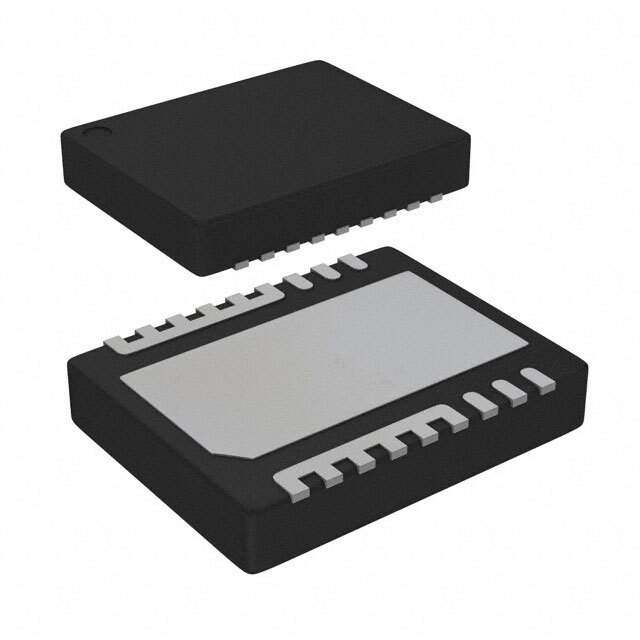

The device is also characterized by its robust protection features, including under-voltage lockout, over-current protection, and thermal shutdown, which safeguard the system against various fault conditions. Additionally, its compact 3.3mm x 3.3mm QFN package is RoHS compliant and designed for easy soldering and inspection on the production line.

With its high efficiency, compact design, and robust protection features, the CSD97395Q4MT NexFET™ power block from Texas Instruments stands out as an excellent choice for designers looking to optimize their power supply solutions in terms of performance and space.
