IRSM505-044DA Infineon Technologies – Price, Stock & Datasheet
Same model may have multiple batches, images only for reference.

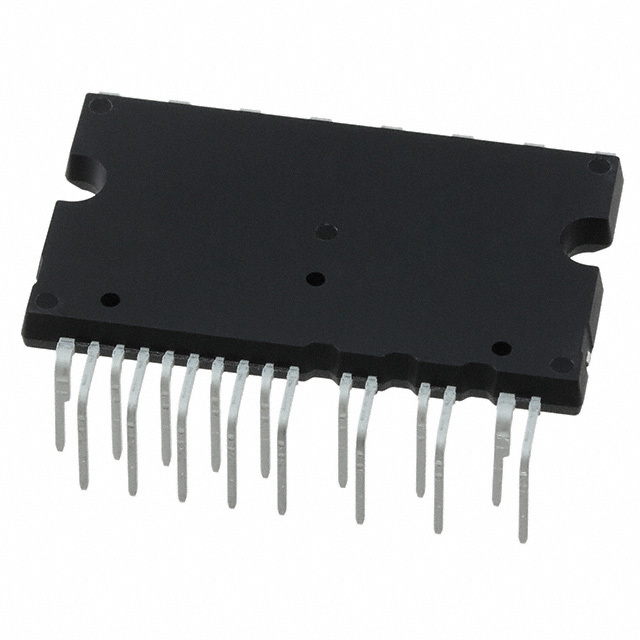

IRSM505-044DA

Part No IRSM505-044DA
Manufacturer Infineon Technologies
Catalog PMIC - Full, Half - Bridge Drivers
Description IC HALF BRIDGE DRIVER 3A 23DIP
Sample
Rohs State Need to verify
ECAD Module
Need Help

Products specifications Report Issue?

Output Configuration Half Bridge (3)
Applications AC Motors
Interface Logic
Load Type Inductive
Technology MOSFET (Metal Oxide)
Rds On (Typ) 800mOhm LS, 800mOhm HS
Current - Output / Channel 3A
Current - Peak Output 15A
Voltage - Supply 13.5V ~ 16.5V
Voltage - Load 200V (Max)
Temperature Range - Operating -40°C ~ 150°C (TJ)
Features Bootstrap Circuit
Fault Protection UVLO
Mounting Type Through Hole
Case / Package 23-DIP Module (0.573", 14.55mm)
Supplier Device Package 23-DIP
Package Bulk
Supply and Demand Status Normal
Win Source Part Number 1541386-IRSM505-044DA
Ultra Librarian 3D Model Ultra Librarian IRSM505-044DA CAD Model
