ON Semiconductor MBR350 Schottky Barrier Rectifier

The MBR350 from ON Semiconductor is a robust Schottky Barrier Rectifier that is designed to offer efficient and reliable performance for a variety of applications. This component is well-suited for use in low-voltage, high-frequency inverters, free-wheeling, and polarity protection applications. Its low power loss and high efficiency are due to the Schottky barrier principle, which ensures minimal forward voltage drop and rapid switching capabilities.

Key Features:

• Peak Repetitive Reverse Voltage: With a peak repetitive reverse voltage of 50V, the MBR350 is capable of handling moderate voltage requirements in electronic circuits.
• Forward Continuous Current: It offers a forward continuous current of 3A, making it suitable for a range of power applications.
• Low Forward Voltage Drop: The device provides a low forward voltage drop, which enhances power efficiency by reducing power loss during operation.
• High Surge Capability: The MBR350 is designed to withstand high surge currents, which is critical for applications that experience short-duration over-voltage conditions.
• Guard Ring Die Construction: The guard ring die construction ensures reliability and stability by providing enhanced transient protection.
• Operating Temperature Range: This rectifier can operate within a wide temperature range from -65°C to 125°C, ensuring functionality across various environmental conditions.

Applications:

• Switching power supply
• Converters
• Free-wheeling diodes
• Reverse battery protection
• DC-to-DC converters
• Automotive applications

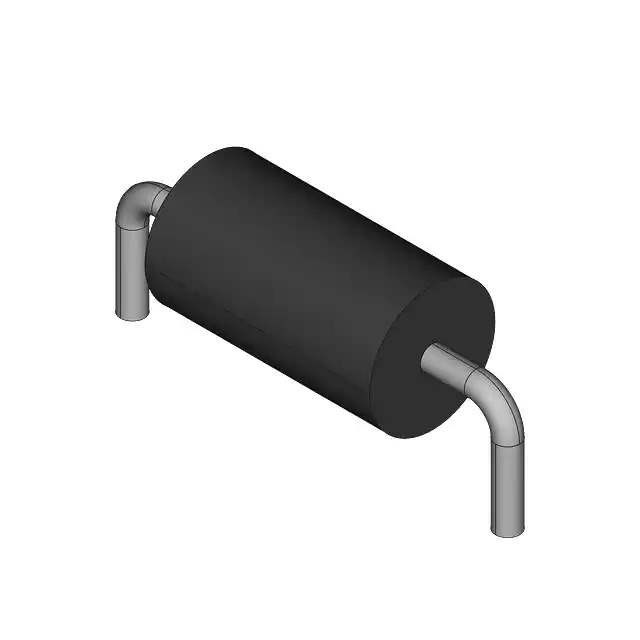

The MBR350 is available in a compact DO-201AD package, which is suitable for automated insertion and meets the environmental standards of RoHS compliance. Its compact size and robust construction make it an excellent choice for designing energy-efficient and space-conscious power supply circuits.

With ON Semiconductor's commitment to quality and performance, the MBR350 Schottky Barrier Rectifier is a reliable choice for engineers and designers looking to enhance their electronic designs with a component that offers both efficiency and durability.
