The MC33074DG from ON Semiconductor is a high-performance operational amplifier that offers a blend of features making it ideal for a wide range of applications. This integrated circuit is designed to deliver enhanced performance in systems that require low power consumption and high accuracy.

Key Features

• Wide Supply Range: The MC33074DG can operate from a single or dual supply, with a wide voltage range that allows for flexible implementation in various circuit configurations.
• High Gain Bandwidth Product: With a gain bandwidth product of 4.5 MHz, this operational amplifier is capable of handling signals in both audio and video applications, ensuring clear and precise amplification.
• Low Input Offset Voltage: The device boasts a low input offset voltage, which minimizes errors and improves overall system accuracy.
• Low Input Bias Current: The low input bias current is particularly beneficial in applications where impedance matching is crucial, such as sensor interfaces and analog filters.
• Large Output Voltage Swing: The MC33074DG can provide a large output voltage swing, which is near the supply rail levels, thus maximizing the dynamic range in various applications.

Applications

The versatility of the MC33074DG makes it suitable for a multitude of applications, including:

• Audio processing equipment
• Active filters
• Data acquisition systems
• Instrumentation
• Control systems

Package and Quality

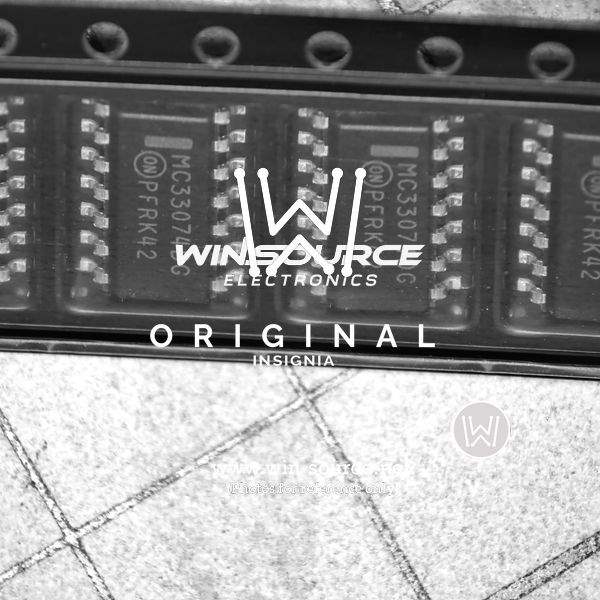

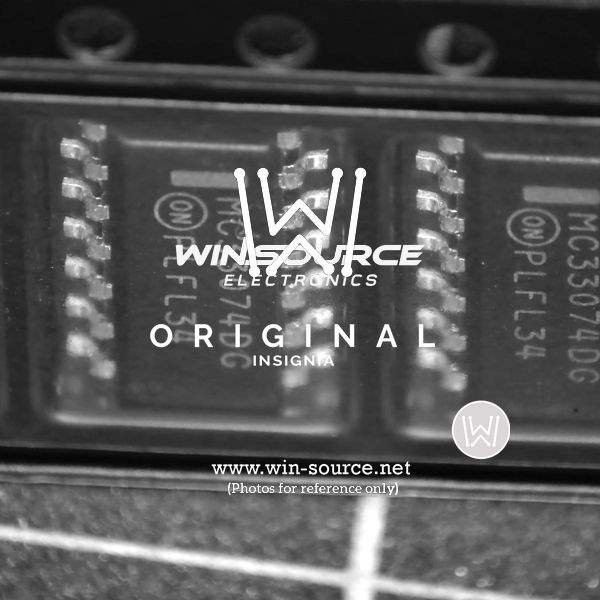

The MC33074DG comes in a SOIC-14 package, which is not only space-efficient but also suitable for automated assembly processes. ON Semiconductor is committed to high standards of quality, and this product is no exception. It is designed and manufactured to meet the rigorous demands of the industrial and consumer markets.

Conclusion

For designers looking for an op-amp with a good balance of power efficiency, precision, and versatility, the MC33074DG by ON Semiconductor is an excellent choice. Whether for professional audio equipment, sensor interfacing, or any application requiring a reliable operational amplifier, the MC33074DG delivers performance that can be counted on.
