ON Semiconductor MC33172DR2G Operational Amplifier

The MC33172DR2G is a versatile operational amplifier (op-amp) designed and manufactured by ON Semiconductor. This high-performance device is a part of ON Semiconductor's MC3xxx series and is particularly suitable for a wide range of applications, including industrial, automotive, and consumer electronics.

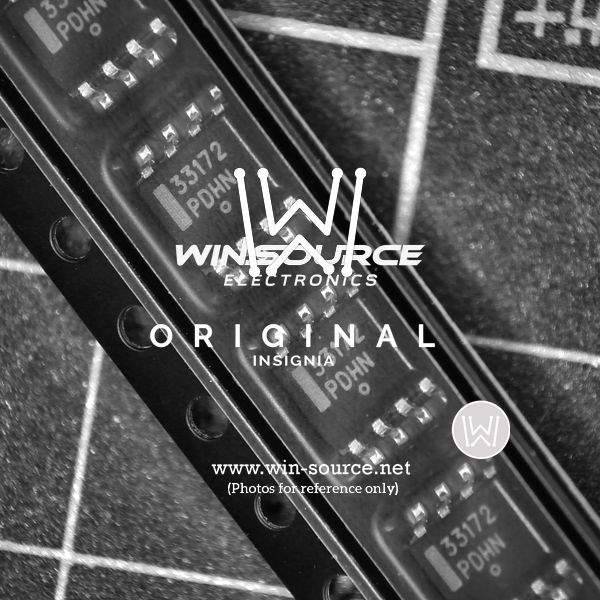

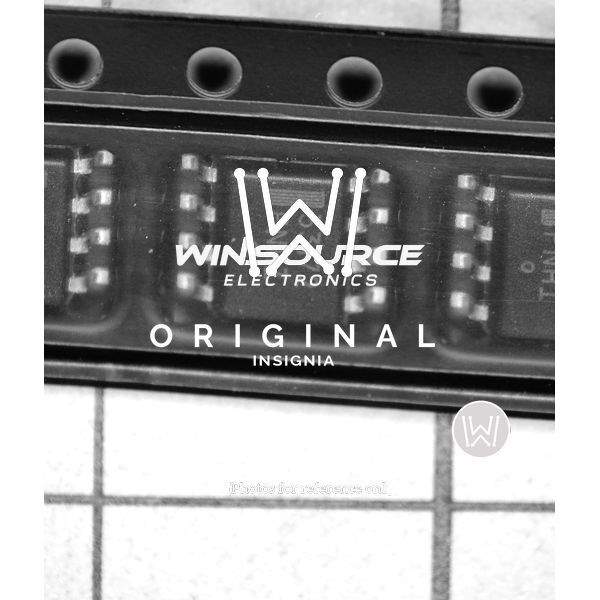

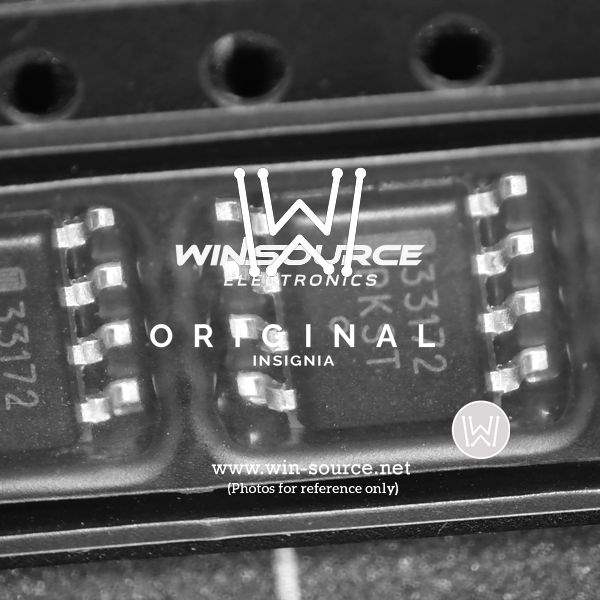

The MC33172DR2G features a dual amplifier configuration and comes in an 8-SOIC package, which makes it compact and suitable for space-constrained applications. The device operates at a voltage range from 3V to 44V (±1.5V to ±22V), providing designers with flexibility in various power supply scenarios. This operational amplifier boasts a bandwidth of 4.5 MHz and a slew rate of 13 V/μs, ensuring fast and accurate signal processing capabilities.

One of the key advantages of the MC33172DR2G is its low input bias current, which is typically 20 nA, making it an excellent choice for applications requiring high input impedance. Additionally, the op-amp has a low input offset voltage of 2 mV and an input offset current of 2 nA, ensuring high accuracy in signal amplification and conditioning tasks.

The MC33172DR2G is also designed with an extended industrial temperature range of -40°C to +85°C, which allows it to operate reliably in harsh environments. Its robust design includes ESD protection and latch-up immunity, which enhances the durability of the device against electrostatic discharges and other potential industrial hazards.

Applications for the MC33172DR2G are diverse and include sensor interfaces, power supply control, audio processing, active filters, and other analog signal conditioning circuits. Its performance characteristics make it a suitable choice for both new designs and as a drop-in replacement for many existing applications requiring an operational amplifier with its specifications.

In summary, the MC33172DR2G from ON Semiconductor is a high-performance, dual operational amplifier that offers reliability, accuracy, and flexibility for a multitude of electronic applications. Its compact size, combined with its robust design, makes it an ideal choice for engineers and designers looking for a dependable op-amp solution.
