Products specifications

Categories Integrated Circuits
Manufacturer ON Semiconductor
Packaging Tube
Status Obsolete
Function Step-Up, Step-Down
Output Configuration Positive or Negative
Topology Buck, Boost
Output Type Adjustable
Voltage - Input (Minimum) 7.5V
Voltage - Input (Maximum) 40V
Min/Fixed Output Voltage 5.05V
Maximum Output Voltage 40V (Switch)
Output Current 3.3A (Switch)
Switching Frequency 72kHz
Temperature Range - Operating 0°C ~ 70°C
Mounting Style Through Hole

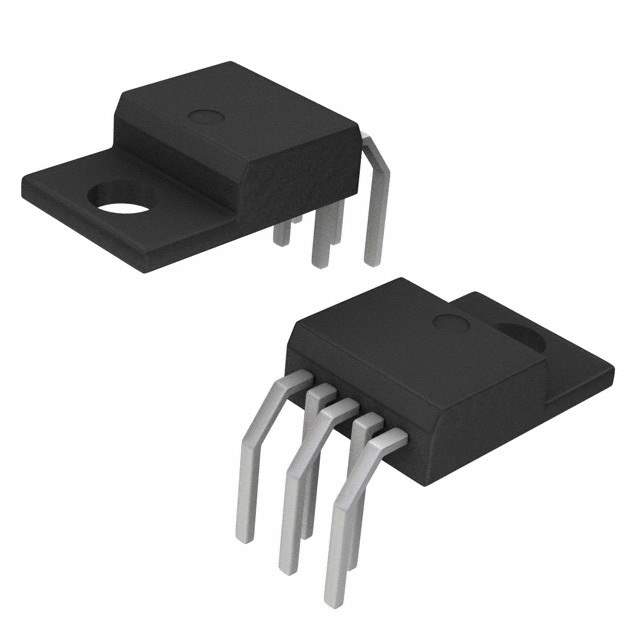

Manufacturer Package TO-220-5 Formed Leads
Supplier Device Package TO-220-5 Horizontal
Family Part Number MC34166
Manufacturer Pack Quantity 50
MSL Level 1 (Unlimited)
Win Source Part Number 1218675-MC34166TH
Manufacturer Homepage www.onsemi.com
Popularity Medium
Supply and Demand Status Limited
Ultra Librarian 3D Model Ultra Librarian MC34166TH CAD Model

Description

The MC34166TH from ON Semiconductor is a versatile high-performance switching regulator that is designed to cater to a wide range of power supply applications. This component is capable of providing efficient DC-DC conversion with a minimum number of external components, making it a compact and reliable solution for various electronic devices.

Key Features

  • Wide Input Voltage Range: The MC34166TH operates over a broad input voltage range from 7.6 V to 40 V, allowing it to be used in multiple applications including automotive, industrial, and consumer electronics.
  • High Output Current: Capable of delivering output currents up to 3 A, this regulator can power a range of high-demand circuits and components.
  • Adjustable Output Voltage: The output voltage is adjustable from 1.23 V to 37 V, providing flexibility for custom voltage requirements.
  • High Efficiency: With its high-efficiency operation, the MC34166TH helps in reducing power loss and heat generation, which is crucial for maintaining the reliability and longevity of electronic systems.
  • Protection Features: It includes built-in protection mechanisms such as thermal shutdown, current limit, and safe area compensation, ensuring safe operation under various conditions.
  • Frequency Operation: The device operates at a fixed frequency of 52 kHz which allows for a predictable performance and the use of smaller filter components.

Applications

The MC34166TH is suitable for a wide array of applications, including:

  • Simple high-efficiency step-down (buck) regulators
  • Efficient pre-regulators for linear regulators
  • Step-up (boost) converters
  • Switched-mode power supplies (SMPS)

Package and Quality

ON Semiconductor's MC34166TH comes in a thermally enhanced 5-lead TO-220 package, which offers improved thermal performance and is suitable for high-power applications. The device is manufactured under ON Semiconductor's rigorous quality control standards, ensuring high reliability and performance consistency for your power management needs.
