Introducing the LM2674LD-5.0/NOPB Step-Down Voltage Regulator

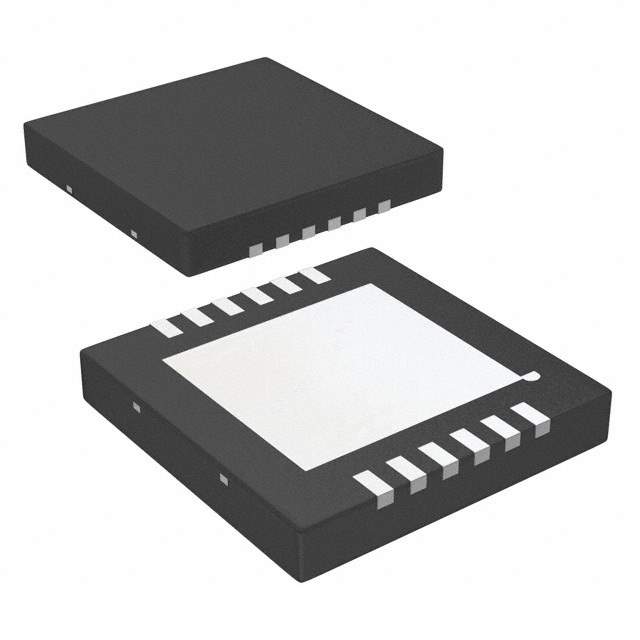

The LM2674LD-5.0/NOPB from Texas Instruments is a highly efficient, step-down voltage regulator that offers the perfect solution for a variety of electronic applications. This regulator is designed to deliver a fixed output voltage of 5.0V with an impressive output current of up to 500mA. The device is housed in a compact, leadless 14-pin LLP package, which is ideal for space-constrained applications.

With its integrated features and advanced circuit design, the LM2674LD-5.0/NOPB provides a high-efficiency power conversion, which can reach up to 92%, minimizing energy loss and heat generation. This efficiency is maintained over a wide range of load currents, making it suitable for both light-load and heavy-load conditions. The regulator operates over an input voltage range from 8V to 40V, accommodating a variety of power sources and ensuring stable operation even with fluctuating input voltages.

The LM2674LD-5.0/NOPB employs a simple and easy-to-use switch-mode power supply (SMPS) architecture. It incorporates a fixed-frequency pulse-width modulation (PWM) control technique, which reduces electromagnetic interference (EMI) and allows for predictable operation. The regulator also features internal compensation, which reduces the number of external components required and simplifies the design process.

Protection features of the LM2674LD-5.0/NOPB include thermal shutdown and current limit, safeguarding the device and the connected load from damage due to excessive heat or overcurrent conditions. Additionally, the regulator has an inbuilt soft-start function that gradually ramps up the output voltage, preventing inrush current at startup and ensuring a smooth power-up sequence.

Whether you're designing power supplies for consumer electronics, telecommunications, or industrial systems, the LM2674LD-5.0/NOPB provides a reliable and efficient solution for your DC-DC conversion needs. Its robust design, high efficiency, and ease of use make it an excellent choice for engineers looking to enhance the performance and longevity of their electronic products.

For detailed specifications, application notes, and design resources, visit the Texas Instruments website to ensure the optimal use of the LM2674LD-5.0/NOPB in your next project.
