ON Semiconductor MC74VHC1G125DT1G Single Non-Inverting Buffer

The MC74VHC1G125DT1G from ON Semiconductor is a high-performance, single non-inverting buffer with a three-state output. This advanced CMOS (Complementary Metal-Oxide Semiconductor) device has been meticulously designed for use in systems that require high-speed, low-power operation. The buffer is part of the VHC family of products, which are well-known for their robust noise immunity and minimal power consumption.

Key Features

• High Speed: The device is capable of operating at high speeds, with a typical propagation delay time of only 5.2ns at a 5V supply, making it suitable for high-speed data transmission and processing applications.
• Low Power Dissipation: It features a low power dissipation characteristic, with a maximum ICC of only 2µA at 25°C, contributing to energy efficiency in electronic circuits.
• Wide Operating Voltage Range: The buffer can operate over a wide voltage range from 2V to 5.5V, providing flexibility for use in various system voltages.
• High Output Drive: With a high output drive capability at 5V, it can drive up to 8 LSTTL (Low-Power Schottky TTL) loads, ensuring compatibility with older logic families.
• Three-State Output: The three-state output feature allows for connection to a bus-structured system, enhancing the versatility of this component in complex digital circuits.

Applications

The MC74VHC1G125DT1G is suitable for a wide range of applications, including:

• Bus Interface/Buffering
• Signal Gating
• Line Driving
• Logic Level Shifting
• Memory Address Driving

Package and Quality

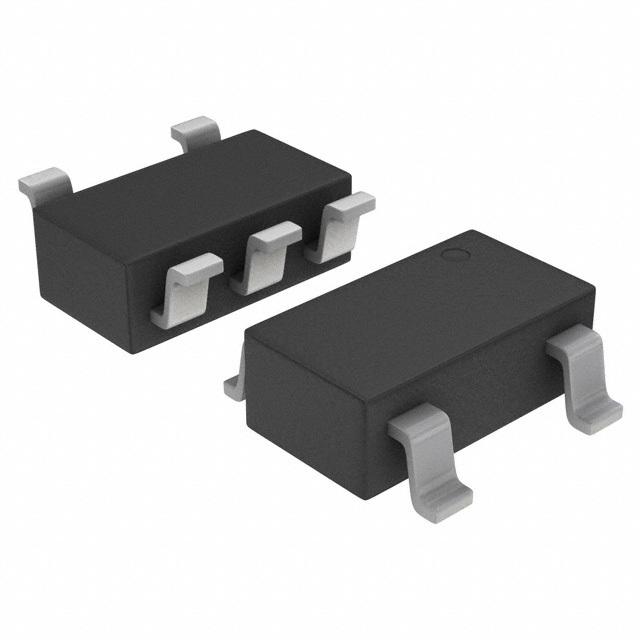

The device is offered in a compact SOT-23-5 package, which is ideal for space-constrained applications. ON Semiconductor ensures high-quality and reliability standards, making the MC74VHC1G125DT1G a reliable choice for both commercial-grade and industrial applications. The product is also compliant with RoHS and Green Product standards, reflecting ON Semiconductor's commitment to environmental sustainability.

With its combination of high-speed operation, low power consumption, and wide voltage range, the MC74VHC1G125DT1G is an excellent choice for designers looking to optimize their digital systems' performance and power efficiency.
