ON Semiconductor MC74VHC1G32DFT1 Single 2-Input OR Gate

The ON Semiconductor MC74VHC1G32DFT1 is a high-performance, single 2-input OR gate integrated circuit, designed to operate with a power supply range of 2V to 5.5V. This device is fabricated with silicon gate CMOS technology which ensures low power consumption and high noise immunity characteristic of CMOS integrated circuits. It provides the ideal solution for low-power and high-speed logic circuitry needs.

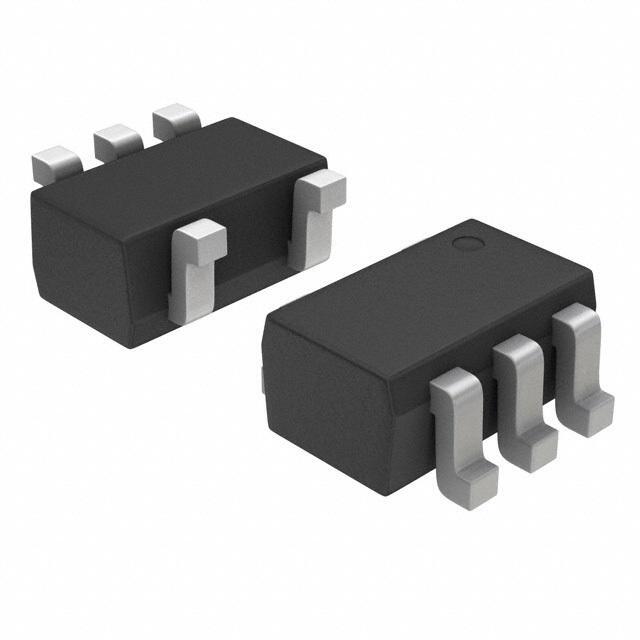

Featuring a small footprint, the MC74VHC1G32DFT1 comes in a SC-88A (SOT-353) surface-mount package, which is highly suited for space-constrained applications. The device's design allows for a significant reduction in board space requirements, making it an excellent choice for modern compact electronic assemblies.

With its fast propagation delay and high current drive capability, the MC74VHC1G32DFT1 is capable of driving up to 8 LSTTL loads over the full temperature range. It is also characterized for operation from -55°C to +125°C, ensuring reliable performance in a wide range of environmental conditions. This makes it suitable for use in a variety of applications, including industrial, automotive, and consumer electronics where robustness and reliability are critical.

The logic gate has inputs and outputs on opposite sides of the package, allowing for easier layout and reduced signal interference. The balanced propagation delays for all inputs provide consistent high-speed operation, which is a key feature for synchronous applications. Additionally, the device meets the requirements of JEDEC standard no. 7A, and it is compatible with TTL outputs, allowing it to be used in mixed-voltage environments.

ON Semiconductor's commitment to environmental sustainability is evident in the MC74VHC1G32DFT1, as it is lead-free, halogen-free, and RoHS compliant. This reflects the company's dedication to manufacturing eco-friendly products without compromising on quality and performance.

In summary, the MC74VHC1G32DFT1 from ON Semiconductor is an efficient and reliable choice for designers looking to implement a single 2-input OR gate in their digital logic circuits, with its low power consumption, high-speed operation, and compact packaging adding significant value to a wide array of electronic projects.
