The MCH6331-TL-E from ON Semiconductor is a high-performance, P-Channel MOSFET designed for advanced power management and switching applications. This device is a testament to ON Semiconductor's commitment to providing energy-efficient, robust, and reliable components for a wide array of electronic systems.

Key Features

• Low On-Resistance: The MCH6331-TL-E boasts a low on-resistance, which translates to reduced conduction losses and improved overall efficiency in applications where it is deployed.
• High-Speed Switching: Engineered for high-speed switching, this MOSFET is ideal for applications that require rapid on-off cycles, ensuring minimal energy waste and enhanced performance.
• P-Channel Device: As a P-Channel MOSFET, it typically allows for simpler drive circuitry in certain configurations compared to N-Channel MOSFETs, especially in high-side switching applications.

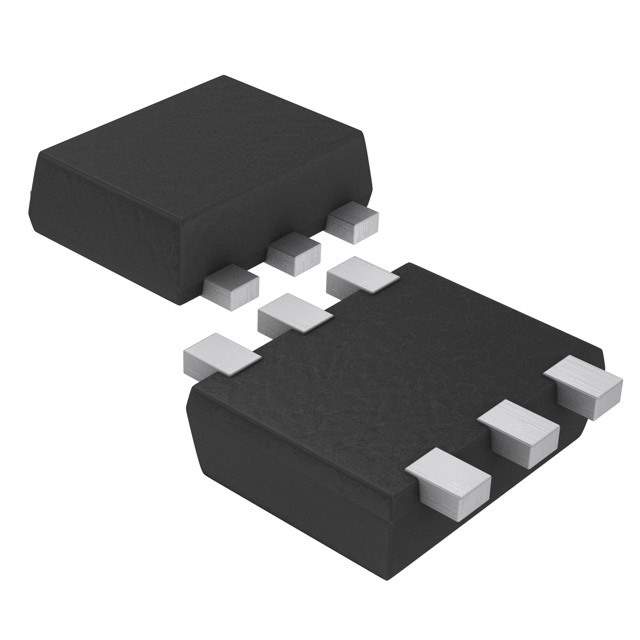

• Compact Package: The MCH6331-TL-E is available in a compact TSMT-3 package, making it suitable for space-constrained applications without compromising on power handling capability.

Applications

The versatility of the MCH6331-TL-E allows it to be used in a variety of applications, including, but not limited to:

• Power Management Systems
• Load Switches
• Battery Management
• DC/DC Converters
• Motor Control Circuits

Specifications

Some of the key specifications of the MCH6331-TL-E are:

• Drain-Source Voltage (Vdss): -30V
• Continuous Drain Current (Id): -6A
• Power Dissipation (Pd): 1.25W
• Gate-Source Voltage (Vgs): ±20V
• Operating Temperature Range: -55°C to 150°C

Reliability and Quality

ON Semiconductor is renowned for its high standards in manufacturing and quality control. The MCH6331-TL-E is built to not only meet but exceed industry standards for performance and reliability, ensuring that it can withstand the rigors of demanding applications.

Conclusion

In summary, the MCH6331-TL-E from ON Semiconductor is an exceptional P-Channel MOSFET that offers low on-resistance, high-speed switching, and a compact form factor, making it a top choice for designers looking to optimize their power management and switching systems.
