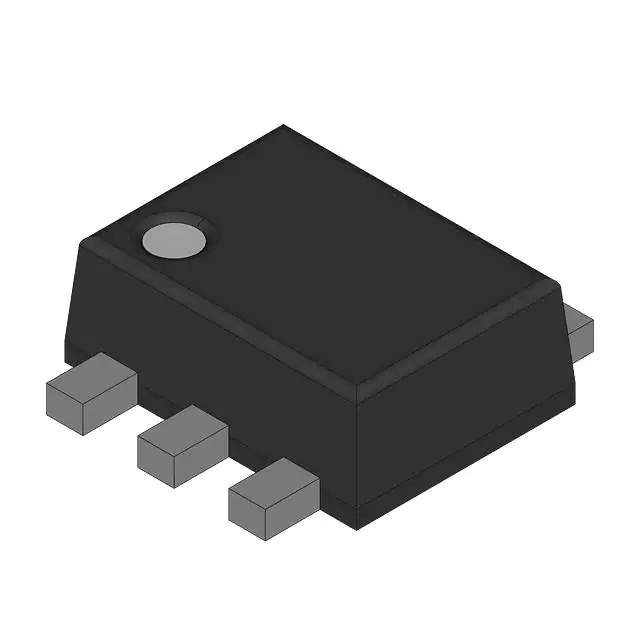

ON Semiconductor MCH6422-TL-E P-Channel MOSFET

The MCH6422-TL-E is a high-performance P-Channel MOSFET from ON Semiconductor, designed to deliver efficient power management and switching capabilities for a wide range of electronic applications. This compact yet robust component is ideal for engineers and designers looking to achieve low on-resistance and high-speed switching in their circuit designs.

Key Features:

• Low On-Resistance: The MCH6422-TL-E features an exceptionally low on-resistance, which minimizes power loss and improves overall efficiency, making it suitable for power-intensive applications.
• High-Speed Switching: Engineered for high-speed switching operations, this MOSFET can handle fast transitions, which is essential for high-frequency applications.
• Voltage and Current Ratings: With a drain-source voltage (Vdss) of -20V and a continuous drain current (Id) of -6A, the MCH6422-TL-E is capable of managing significant power levels.
• Power Dissipation: It has a power dissipation of 1W, which ensures that the device can sustain a moderate amount of power without overheating.
• Package: The MOSFET comes in a compact SOP-8 package, which allows for efficient use of PCB space without compromising performance.
• Lead-Free and RoHS Compliant: Adhering to environmental standards, the MCH6422-TL-E is lead-free and RoHS compliant, making it suitable for use in eco-friendly products.

Applications:

The versatility of the MCH6422-TL-E P-Channel MOSFET makes it an excellent choice for a variety of applications, including:

• Power management modules
• DC/DC converters
• Load switches
• Battery management systems
• Motor control circuits

With its combination of low on-resistance, high-speed switching, and compact packaging, the MCH6422-TL-E from ON Semiconductor is a reliable and efficient solution for designers looking to enhance their power management systems. Its compliance with environmental standards further ensures that the product is suitable for modern, eco-conscious electronic designs.
