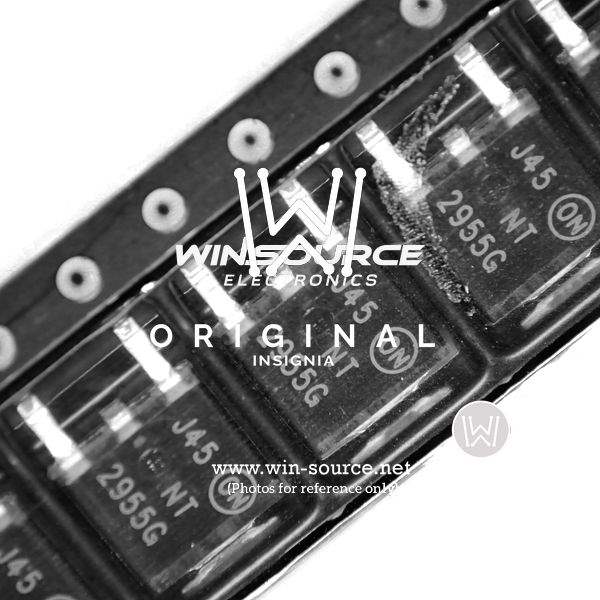

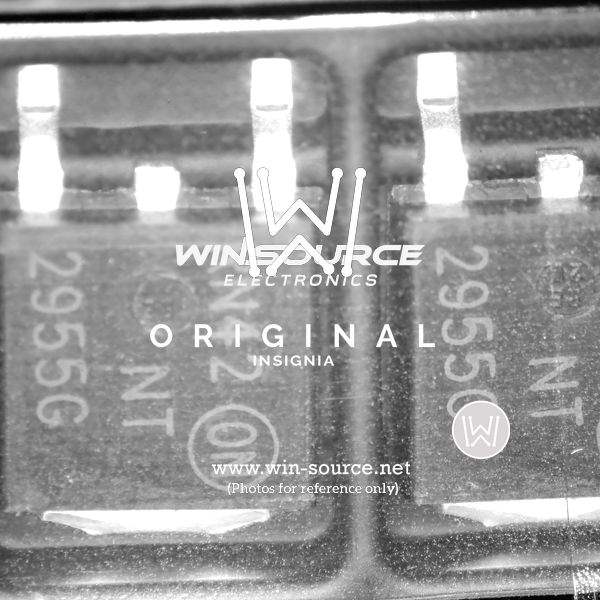

The MJD2955T4G is a high-performance PNP power transistor from ON Semiconductor, designed to cater to a wide variety of power amplification and switching applications. This power transistor is a member of the MJD series, well-known for its reliability and efficiency in power management tasks.

Key Features

• High Current Handling: Capable of handling continuous collector currents up to 10 A, making it suitable for high-power applications.
• High Voltage Tolerance: With a collector-emitter voltage (VCEO) of -100V, it can easily manage high voltage operations.
• Low Saturation Voltage: This transistor has a low collector-emitter saturation voltage, which minimizes power loss and improves efficiency.
• Complementary NPN Type: The MJD2955T4G has a complementary NPN counterpart, the MJD3055T4G, which can be used in push-pull and other balanced amplifier designs.
• Surface Mount Package: Comes in a DPAK (TO-252) surface-mount package, which saves space on PCBs and is suitable for automated assembly processes.

Applications

The MJD2955T4G is versatile and can be used in a variety of applications, including:

• Power regulators
• DC-DC converters
• Motor controllers
• Audio amplifiers
• Switching circuits
• Power management devices

Quality and Reliability

ON Semiconductor is a trusted name in the semiconductor industry, and the MJD2955T4G is manufactured to meet the highest quality and reliability standards. It features a robust design that ensures stable operation even under harsh conditions. The device also complies with RoHS regulations, making it an environmentally friendly choice for designers looking to create green products.
