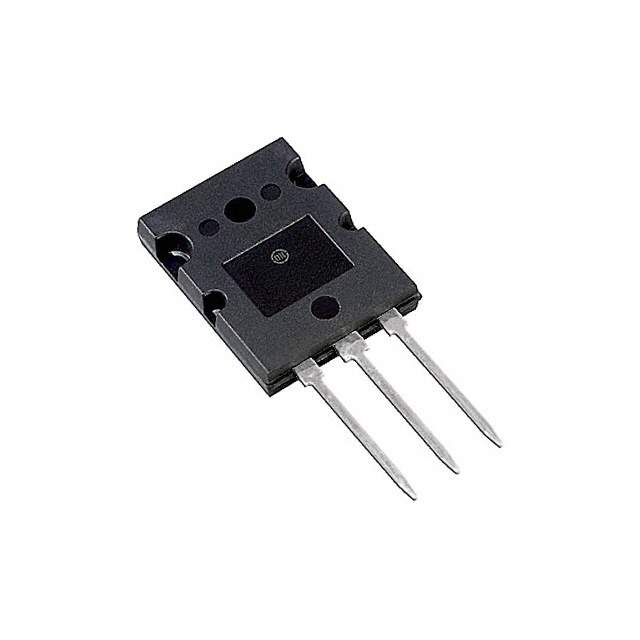

ON Semiconductor MJL21194 Power Transistor

The MJL21194 is a high-power, high-performance transistor from ON Semiconductor, designed to deliver reliable and efficient performance for a wide range of applications. This silicon power transistor is part of the PowerBase™ transistor series, which offers devices that are optimized for high-fidelity audio amplification and a variety of other power applications.

Key Features

• High Voltage Capabilities: The MJL21194 is capable of withstanding voltages up to 250V, making it suitable for circuits that operate at high voltages.
• High Current Handling: This transistor can handle continuous collector currents up to 16A, providing ample current for demanding applications.
• Complementary NPN Type Available: For applications requiring a push-pull configuration, the MJL21194 has a complementary NPN type, the MJL21193, allowing for a well-matched pair in audio amplifier designs.
• Excellent Gain Linearity: The device offers superb gain linearity, which is critical for high-fidelity audio applications, ensuring minimal distortion and high-quality sound reproduction.
• Robust Thermal Performance: With an exceptional ability to dissipate heat, the MJL21194 can maintain stability and performance even under high load conditions. Its maximum operating temperature can reach up to 150°C.
• Safe Operating Area (SOA) Protection: The transistor includes SOA protection, which enhances its reliability and longevity by preventing operation outside its safe limits.

Applications

The MJL21194 is suitable for a variety of applications, including but not limited to:

• High-Fidelity Audio Amplifiers
• General Purpose Power Amplification
• Switching Applications
• Regulators
• Power Supply Systems

Quality and Reliability

ON Semiconductor is known for its commitment to quality, and the MJL21194 is no exception. It is manufactured to the highest standards to ensure that it meets the rigorous demands of commercial and industrial applications. Whether you're designing a high-end audio system or a robust power supply, the MJL21194 offers the performance and reliability that professionals trust.
