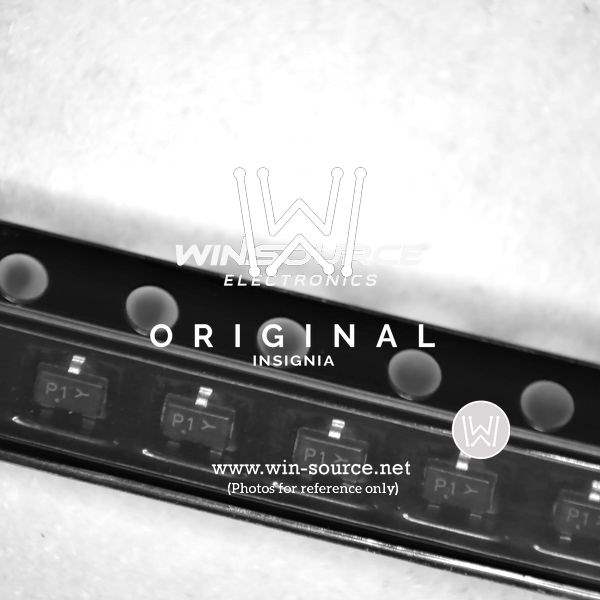

ON Semiconductor MMBT2222AWT1G Product Overview

The MMBT2222AWT1G is a high-performance NPN bipolar junction transistor (BJT) from ON Semiconductor, designed for use in a wide range of electronic applications. This versatile transistor is a surface-mount device that comes in a compact SOT-323 package, making it suitable for space-constrained applications. It is known for its high current gain and low voltage operation, which makes it an ideal choice for amplification and switching purposes.

Key Features

• Transistor Type: NPN
• Package / Case: SOT-323
• Collector-Emitter Voltage (VCEO): 40 V
• Collector-Base Voltage (VCBO): 75 V
• Emitter-Base Voltage (VEBO): 6 V
• Collector Current - Continuous (IC): 600 mA
• Power Dissipation (Pd): 225 mW
• DC Current Gain (hFE): 100 to 300 at 10 mA, 10 V
• Operating and Storage Junction Temperature Range: -55 to +150 °C

Applications

The MMBT2222AWT1G is commonly used in a variety of applications that require reliable switching and amplification. These applications include, but are not limited to:

• General-purpose amplification
• Switching circuits
• Linear amplification
• Signal processing
• Power management
• Driver stages in audio amplifiers

Performance and Quality

ON Semiconductor's MMBT2222AWT1G is built to deliver consistent performance. The device's high current gain allows for efficient signal amplification with minimal power loss. Its robust construction ensures reliability and longevity, even under challenging conditions. The SOT-323 package is not only space-efficient but also allows for excellent thermal management, ensuring that the device operates within its specified temperature range.

As a product from ON Semiconductor, a leading manufacturer in the semiconductor industry, the MMBT2222AWT1G comes with the assurance of quality and performance. It is suitable for both commercial and industrial applications where a reliable NPN transistor is required.

In summary, the MMBT2222AWT1G NPN transistor is a high-quality component designed to meet the needs of modern electronics. Its compact form factor, coupled with its robust electrical characteristics, make it an excellent choice for designers and engineers looking to incorporate a reliable switching or amplification element into their circuits.
