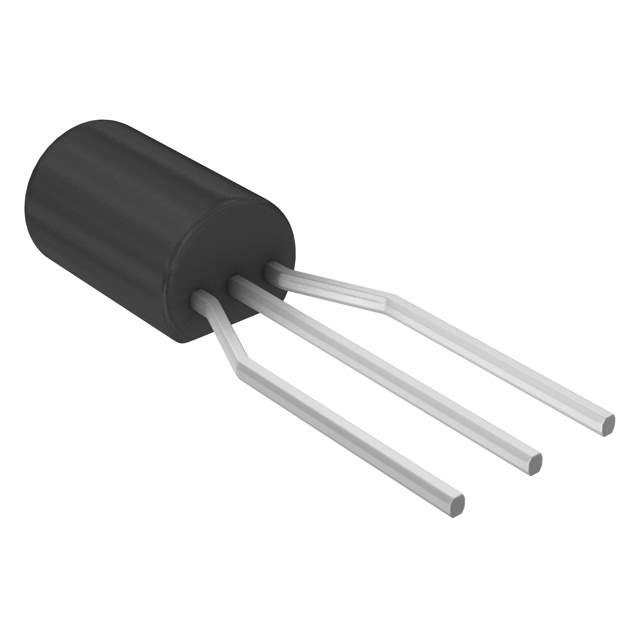

ON Semiconductor MPSW06G Bipolar Transistor

The MPSW06G is a high-performance bipolar junction transistor (BJT) from ON Semiconductor, renowned for its reliability and efficiency in a wide range of electronic applications. This NPN transistor is designed to handle moderate power levels while maintaining excellent hFE linearity, making it an ideal choice for audio amplification and signal processing applications.

The device comes in a TO-226 package, also known as the TO-92 configuration, which is a compact, through-hole package. This traditional packaging allows for easy mounting on printed circuit boards (PCBs) and is well-suited for prototyping or small-scale production. The MPSW06G is capable of withstanding a collector-emitter voltage (VCEO) of up to 80V, providing ample headroom for various circuit designs.

With a continuous collector current (IC) rating of up to 500mA, the MPSW06G can drive moderate loads with ease. The transistor also boasts a power dissipation (PD) of 625mW, ensuring that it can handle the thermal stresses associated with continuous operation in active circuits.

One of the key features of the MPSW06G is its high DC current gain (hFE), which typically ranges from 40 to 120, depending on the collector current. This high gain makes the MPSW06G an effective amplifier of weak signals, ensuring that it can be used in sensitive audio or signal processing applications where signal integrity is crucial.

The MPSW06G also features low noise characteristics, which is essential for maintaining signal clarity in audio applications. Additionally, it has excellent linearity, which helps in preventing distortion and maintaining the fidelity of the amplified signal.

ON Semiconductor's commitment to quality means that the MPSW06G is designed to meet stringent standards, ensuring reliability and a long operational lifespan. Whether you're designing an audio amplifier, working on a signal processing project, or need a general-purpose transistor for switching applications, the MPSW06G from ON Semiconductor is a solid choice that combines performance with durability.

For detailed specifications and application notes, designers and hobbyists are encouraged to consult the official datasheet provided by ON Semiconductor, which offers comprehensive information to help integrate the MPSW06G into their projects effectively.
