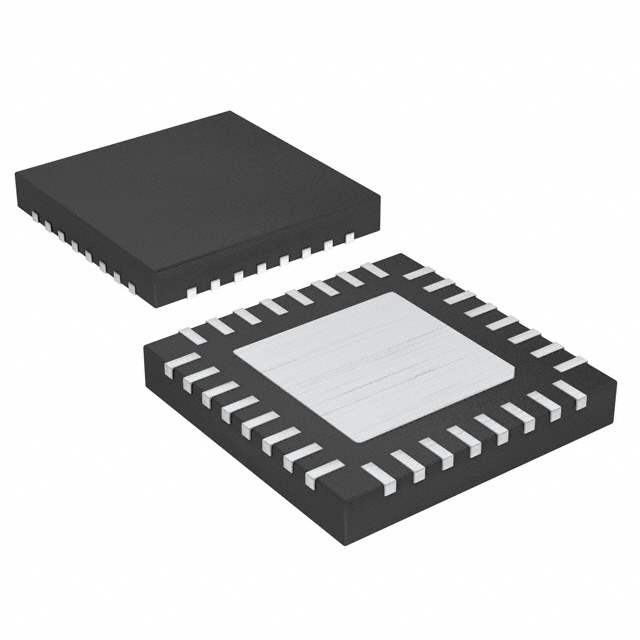

ON Semiconductor NB6L56MNTXG: A High-Performance 2.5V/3.3V Differential Data/Clock D Flip-Flop

The ON Semiconductor NB6L56MNTXG is a versatile and high-speed differential Data/Clock D flip-flop designed to support the demanding requirements of high-speed data communication systems. This device is capable of operating with a supply voltage of either 2.5V or 3.3V, making it suitable for a variety of digital applications.

Constructed with advanced semiconductor technology, the NB6L56MNTXG offers a combination of features that make it an ideal choice for applications requiring precise timing and high data integrity. It is specifically engineered to function as a differential Data and Clock D flip-flop with a clock frequency range up to 6 GHz and data rates up to 6 Gbps.

Key Features

• High-Speed Performance: With its ability to handle clock frequencies up to 6 GHz and data rates up to 6 Gbps, the NB6L56MNTXG is optimized for high-speed signal processing.
• Differential Inputs and Outputs: The device features true and complementary outputs, providing the flexibility required for various signaling environments.
• Power Supply Flexibility: It operates with a single supply voltage of either 2.5V or 3.3V, accommodating different system power schemes.
• Low Voltage Differential Signaling (LVDS): The NB6L56MNTXG supports LVDS I/O for reduced power consumption and noise immunity.
• Internal Input Termination Resistors: The inclusion of input termination resistors allows for direct coupling to the transmission line, simplifying PCB design.
• Functionality: The device can function as a differential Data and Clock D flip-flop or as two independent D flip-flops for added versatility.

Applications

The NB6L56MNTXG is particularly well-suited for use in high-speed communication systems, including:

• SONET/SDH systems
• Gigabit Ethernet
• Fiber Channel
• Backplane interfaces
• Clock and data distribution networks

With its robust design and high-speed capabilities, the ON Semiconductor NB6L56MNTXG is a reliable and efficient solution for designers looking to enhance the performance of their digital systems with a high-quality, flexible flip-flop component.
