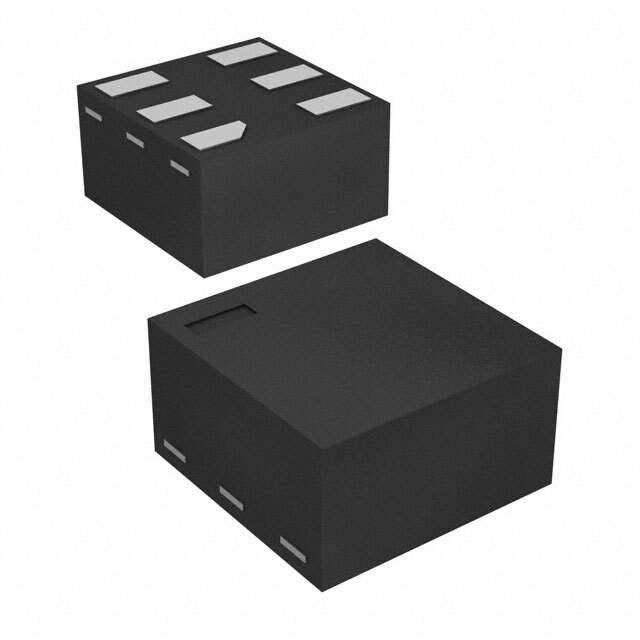

The NC7SZ125FHX from ON Semiconductor is a high-performance, single non-inverting buffer with a three-state output. This tiny but mighty component is part of the 7SZ series, which is designed for optimal power and speed in applications where space is at a premium. The NC7SZ125FHX is housed in a lead-free, halogen-free, ultra-small, and flat lead package, making it a perfect fit for space-constrained applications.

Key Features

• High-Speed Performance: The device operates at a voltage range of 1.65V to 5.5V, which allows for compatibility with a wide range of logic levels and provides fast performance suitable for modern high-speed logic systems.
• Low Power Consumption: Designed with power-saving in mind, the NC7SZ125FHX has a very low static power consumption, making it ideal for battery-operated and power-sensitive applications.
• Advanced Design: The device features advanced 0.35µm CMOS technology, which contributes to its high-speed operation and reduced power consumption.
• Three-State Output: The three-state output enables the buffer to be placed in a high-impedance state, effectively disconnecting the output from the circuit, which is useful for bus management and multiplexing.

Applications

The versatile nature of the NC7SZ125FHX makes it suitable for a broad range of applications. It is commonly used in:

• Portable and battery-powered electronics
• Logic level translation
• Bus driver or buffer applications
• Memory address drivers
• Switches and multiplexers

Quality and Reliability

ON Semiconductor is known for their commitment to quality, and the NC7SZ125FHX is no exception. It is produced to high standards, ensuring reliability and performance consistency. The device is also compliant with the RoHS directive, reflecting ON Semiconductor's dedication to environmental responsibility.

Conclusion

The NC7SZ125FHX is an exemplary solution for designers looking for a non-inverting buffer with high-speed capabilities and low power consumption. Its small footprint and three-state output make it a versatile component suitable for a wide array of applications, all while adhering to ON Semiconductor's rigorous quality standards.
