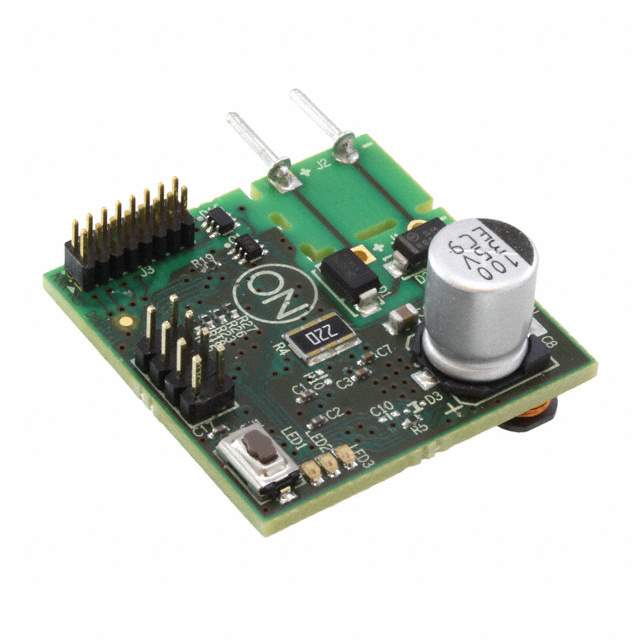

The NCN51206GEVB is an evaluation board designed by ON Semiconductor to showcase the capabilities of the NCN51206 KNX transceiver. This product is specifically engineered for home and building automation, providing a robust and efficient solution for communication over the KNX bus network.

Key Features


• Integrated KNX Transceiver: The board features the NCN51206 transceiver which is designed to interface with the KNX bus through a simple twisted pair. This transceiver is capable of both sending and receiving data on the KNX network, enabling a wide range of automation tasks.

• High Efficiency: With its low power consumption, the NCN51206GEVB is an excellent choice for energy-saving applications within smart buildings.

• Easy Connectivity: The evaluation board comes with all necessary connectors, making it easy to integrate into existing KNX systems for testing and development purposes.

• On-Board Diagnostics: Equipped with diagnostic LEDs, the NCN51206GEVB provides immediate visual feedback on the status of power, bus activity, and error states, simplifying troubleshooting and enhancing the user experience.


Applications

The NCN51206GEVB is ideal for developers and engineers looking to create or test applications within the KNX ecosystem. Typical applications include:


• Smart lighting systems

• Heating, ventilation, and air conditioning (HVAC) controls

• Security and surveillance systems

• Energy management and metering


Technical Specifications

The evaluation board is built around the NCN51206 transceiver which operates at a nominal voltage of 5V and is compliant with the KNX standard for home and building electronic systems. It features a UART interface for communication with a microcontroller and supports a wide range of external components for extended functionality.

Conclusion

The ON Semiconductor NCN51206GEVB Evaluation Board is a versatile tool for any professional involved in the development of KNX-based systems. Its ease of use, combined with the powerful features of the NCN51206 transceiver, makes it an invaluable asset for testing, development, and demonstration of smart home and building solutions.
