The NCP114AMX130TCG is a high-performance, low-dropout linear voltage regulator designed and manufactured by ON Semiconductor. This component is specifically engineered to deliver a stable and reliable power supply for a wide range of applications, including portable devices, wireless communication systems, and digital cameras, among others. Its key features make it an ideal choice for designs requiring a high degree of precision and efficiency.

Key Features

• Output Voltage: The NCP114AMX130TCG provides a fixed output voltage of 1.3V, which is essential for powering low-voltage digital circuits that require stable voltage levels for optimal performance.
• High Accuracy: With an output voltage accuracy of ±1%, this regulator ensures minimal deviation from the desired voltage, contributing to the reliability and stability of the end application.
• Low Dropout: The low dropout voltage of the NCP114AMX130TCG minimizes the difference between the input and output voltage when the input voltage is close to the output voltage, improving efficiency and allowing operation under a wider range of input voltages.
• High PSRR: The high power supply rejection ratio (PSRR) of 75 dB at 1 kHz reduces the sensitivity to fluctuations in the input power supply, delivering a cleaner output voltage.
• Current Capability: This regulator can supply up to 300 mA of continuous output current, making it suitable for moderate power applications.

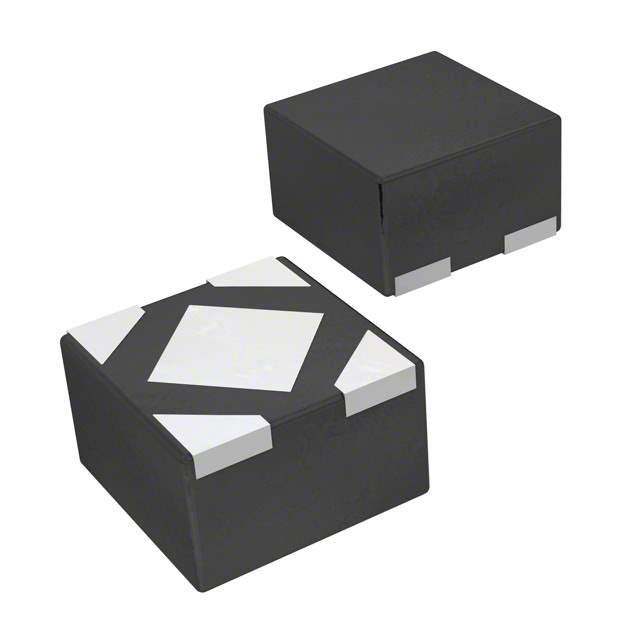

• Thermal Performance: The NCP114AMX130TCG is available in a 4-pin XDFN package, which offers excellent thermal performance and a compact footprint for space-constrained applications.
• Overcurrent and Thermal Protection: Built-in safety features include overcurrent protection and thermal shutdown, enhancing the longevity and reliability of both the regulator and the application it powers.

Applications

The versatility of the NCP114AMX130TCG allows it to be used in a variety of applications. It is particularly well-suited for powering sensitive RF and analog circuits that demand a clean and stable power supply. Its low noise characteristics also make it an excellent choice for audio applications and precision instrumentation where signal integrity is paramount.
