ON Semiconductor NCP3064BMNTXG Overview

The NCP3064BMNTXG is a versatile, high-performance integrated circuit designed by ON Semiconductor, catering to a wide range of power conversion applications. It is a monolithic DC-DC converter control IC that can be configured in several topologies, including boost, buck, and inverting power supplies, making it a flexible solution for designers looking to optimize their power management systems.

Key Features

• Adjustable Output Voltage: This device allows for an adjustable output voltage, giving designers the flexibility to cater to various voltage requirements across different applications.
• High Switching Frequency: Operating at a frequency up to 150 kHz, the NCP3064BMNTXG supports smaller passive components, resulting in a more compact and efficient design.
• Internal Oscillator: The inclusion of an internal oscillator simplifies the design process by reducing the number of external components required.
• Thermal Shutdown: Enhanced safety features include thermal shutdown to protect the device from overheating and potential damage.
• Current Mode Operation: The current mode operation provides excellent transient response, simplifies loop compensation, and ensures consistent performance.

Applications

The NCP3064BMNTXG is ideal for a variety of applications where efficient power conversion is essential. These applications include, but are not limited to:

• Portable Devices
• Power LED Drivers
• Battery Chargers
• DC Power Supply Modules
• Telecommunication Equipment

Package and Quality

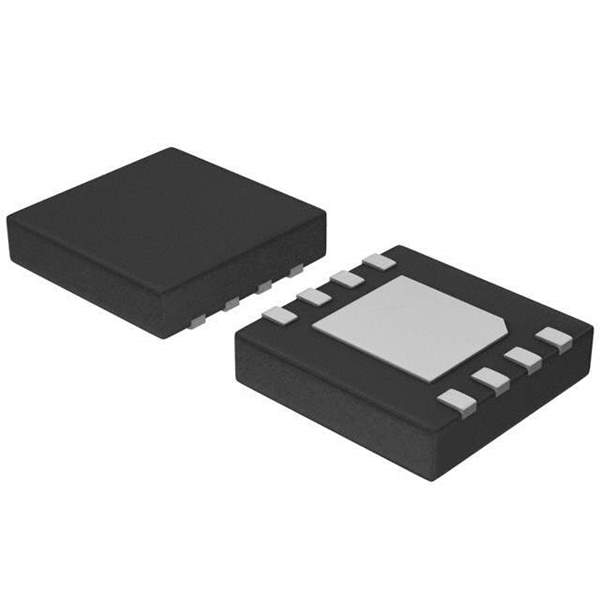

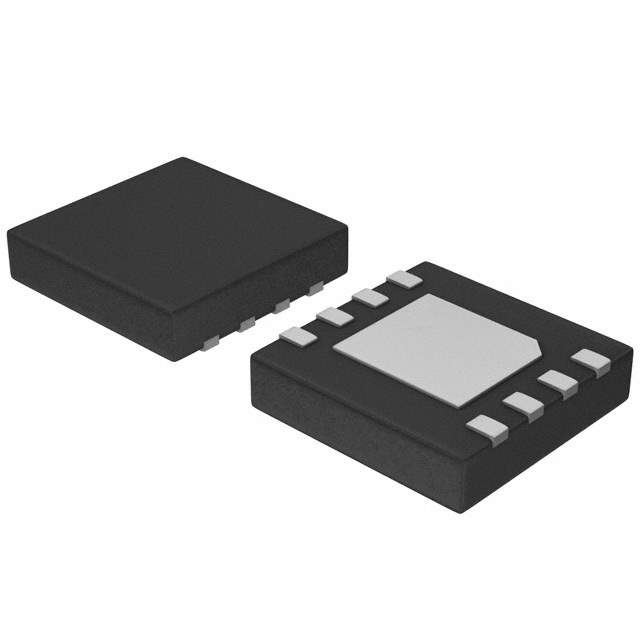

Encased in a compact DFN-8 package, the NCP3064BMNTXG is designed for space-constrained applications. The device is RoHS compliant, ensuring adherence to the latest environmental standards and regulations. ON Semiconductor's commitment to quality is evident in the NCP3064BMNTXG, with rigorous testing and quality control measures in place to deliver reliable and consistent performance.

In summary, the NCP3064BMNTXG by ON Semiconductor is a highly adaptable, efficient, and reliable solution for modern power conversion challenges. Its combination of features and capabilities makes it a go-to choice for engineers looking to create sophisticated power management systems.
