ON Semiconductor NCP3135MNTXG Overview

The ON Semiconductor NCP3135MNTXG is a high-performance, synchronous PWM buck converter that is designed to deliver a continuous output current up to 3 A. This compact and efficient power solution is ideal for a wide range of applications, including computing, networking, and consumer electronics, where space is at a premium and energy efficiency is crucial.

With an input voltage range of 4.5 V to 18 V, the NCP3135MNTXG is versatile enough to handle various power sources, making it suitable for systems that require a stable and reliable power supply. The device operates at a fixed frequency of 340 kHz, which provides an optimal balance between efficiency and component size, allowing for the use of small inductors and capacitors to minimize the overall solution footprint.

The NCP3135MNTXG integrates a pair of low RDS(on) MOSFETs, which significantly reduce conduction losses and improve overall efficiency. This feature, combined with its advanced PWM architecture, ensures that the converter maintains high efficiency across a wide load range. The device also offers a range of protection features, including over-current, over-voltage, under-voltage lockout, and thermal shutdown, which safeguard the system against various fault conditions.

Designed with flexibility in mind, the NCP3135MNTXG provides an adjustable output voltage, which can be set from 0.6 V to the input voltage, using external resistors. This flexibility allows designers to tailor the output voltage to the specific needs of their application without the need for additional components.

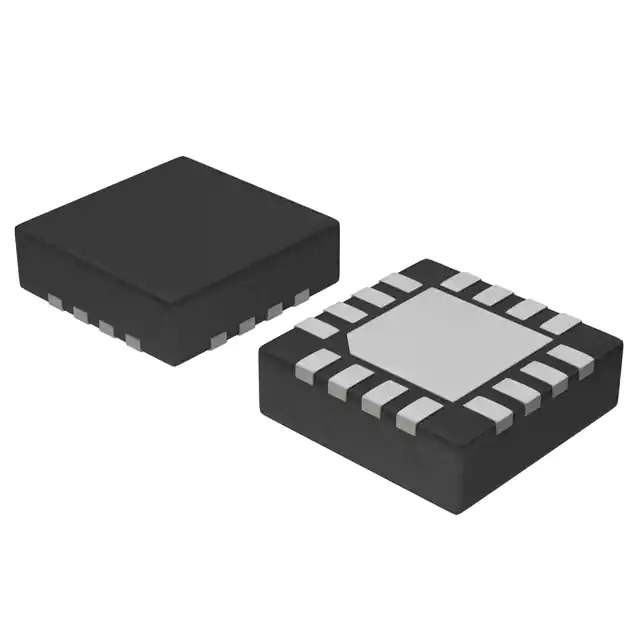

The NCP3135MNTXG comes in a compact QFN-16 package, which is highly suitable for space-constrained applications. The small form factor, combined with its excellent thermal performance, makes this device an excellent choice for designers looking to maximize power density without compromising on reliability or performance.

In summary, the ON Semiconductor NCP3135MNTXG is a robust, efficient, and versatile buck converter that offers a high level of integration, making it an ideal power management solution for a variety of demanding applications.
