ON Semiconductor NCP340MUTBG Load Switch

The ON Semiconductor NCP340MUTBG is a high-performance, single P-channel MOSFET load switch designed for power management applications. It is an ideal solution for portable and battery-powered devices where efficient power distribution and consumption are crucial. This advanced load switch integrates several features that contribute to its reliability, efficiency, and ease of use.

Key Features

• Low R<sub>DS(on): The device boasts a low on-resistance, which minimizes power loss and improves overall efficiency when the switch is in the ON state.
• Input Voltage Range: It operates over a broad input voltage range from 1.0V to 5.5V, making it versatile for various applications and compatible with many standard power rails.
• Current Limiting: The NCP340MUTBG features programmable current limiting to protect the power source and load from overcurrent conditions.
• Fast Turn-On Time: The load switch is engineered for a fast turn-on time, which is essential for applications that require quick power-up sequences.
• Controlled Slew Rate: The device includes a controlled slew rate to reduce inrush current, which can help prevent voltage drops and system instability during turn-on.
• Under-Voltage Lockout (UVLO): The built-in UVLO function ensures that the switch remains off if the input voltage is below a certain threshold, safeguarding the device and the system.

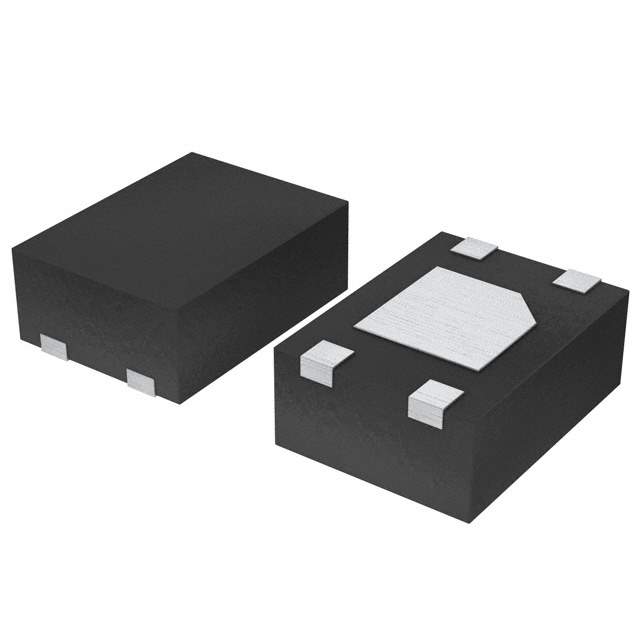

• Ultra-Small Footprint: Packaged in a space-saving 6-pin 1.2mm x 1.0mm x 0.35mm uDFN package, the NCP340MUTBG is ideal for space-constrained applications.

Applications

The NCP340MUTBG is well-suited for a wide range of applications, including:

• Smartphones and tablets
• Wearable devices
• Wireless headsets and earbuds
• Portable media players
• IoT devices
• Power banks

With its combination of low on-resistance, fast switching, and protective features, the ON Semiconductor NCP340MUTBG load switch is an excellent choice for designers looking to enhance the power efficiency and reliability of their portable and battery-powered applications.
