ON Semiconductor NCP6132MNR2G Product Overview

The NCP6132MNR2G is a high-performance, dual-output, synchronous buck controller designed and manufactured by ON Semiconductor. This advanced power management IC is tailored for computing applications, specifically targeting high-density power solutions for CPUs, GPUs, and DDR memory in desktops, notebooks, and servers.

Key Features

• High Efficiency: The NCP6132MNR2G is engineered to provide high efficiency across a wide load range, ensuring optimal power delivery and thermal performance.
• Dual-Channel Operation: It features two independent PWM controllers, allowing for precise voltage regulation on multiple rails simultaneously.
• Programmable Switching Frequency: The device supports a programmable switching frequency from 300 kHz to 1 MHz per phase, enabling designers to optimize performance for their specific application.
• Advanced Control Loop: The controller employs an advanced control loop with voltage mode control, providing fast transient response and excellent loop stability.
• Adaptive Voltage Positioning (AVP): AVP adjusts the output voltage as a function of the load current, which helps in reducing power dissipation and improving system efficiency.
• Power Saving Modes: It incorporates power-saving features such as diode emulation and phase shedding, which are crucial for light load efficiency and battery life extension in portable applications.
• Protection Features: The NCP6132MNR2G is equipped with a comprehensive set of protection features, including over-voltage, under-voltage, over-current, and over-temperature protections, ensuring the safety and reliability of the system.

Applications

Designed to meet the rigorous demands of modern computing systems, the NCP6132MNR2G is ideal for a range of applications:

• Desktop and Notebook CPUs
• Graphics Processing Units (GPUs)
• DDR Memory Power Supplies
• High-Density Power Solutions in Servers

Package and Availability

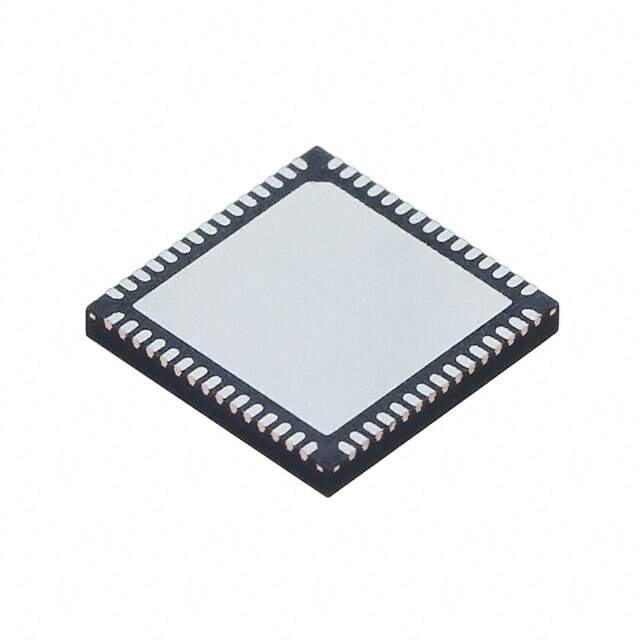

The NCP6132MNR2G comes in a compact QFN-52 package, which allows for a smaller footprint on the PCB while providing excellent thermal performance. This product is available through ON Semiconductor's extensive distribution network, ensuring global availability and support for designers and manufacturers.

In summary, the NCP6132MNR2G from ON Semiconductor is a robust, feature-rich dual-output synchronous buck controller that offers high efficiency, precise control, and extensive protection mechanisms, making it a top choice for powering the next generation of computing hardware.
