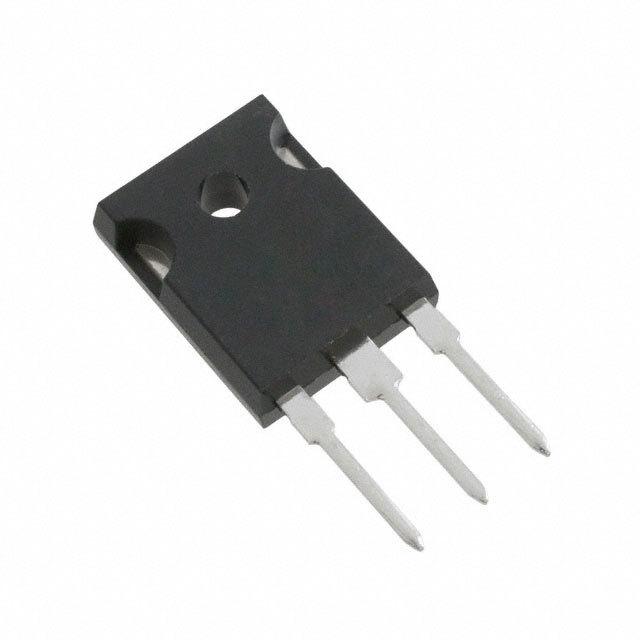

Introducing the NGTB40N65FL2WG Power IGBT from ON Semiconductor

The NGTB40N65FL2WG is a high-performance insulated gate bipolar transistor (IGBT) designed and manufactured by ON Semiconductor, a leader in energy-efficient innovations. This IGBT is part of the renowned family of power semiconductors that are engineered to meet the demanding requirements of high-power switching applications. With its robust design and advanced features, the NGTB40N65FL2WG is an ideal choice for a wide range of power electronics applications, including motor drives, uninterruptible power supplies (UPS), inverter systems, and more.

Key Features and Benefits

• High Current Capability: The NGTB40N65FL2WG is capable of handling continuous collector currents up to 40A, making it suitable for high-power applications.
• High Voltage Rating: With a collector-emitter voltage (Vce) rating of 650V, this IGBT can efficiently manage voltage spikes and transients in various applications.
• Low On-Resistance: The device features a low on-state voltage (Vce(sat)) to minimize conduction losses, enhancing overall system efficiency.
• Fast Switching Speed: The IGBT is designed with a fast switching speed, which reduces switching losses and improves performance in high-frequency operations.
• Co-Packaged Free Wheeling Diode: The inclusion of a co-packaged soft recovery diode ensures efficient freewheeling and reverse recovery performance, which is critical in reducing electromagnetic interference (EMI) and improving reliability.

Enhanced Reliability and Performance

The NGTB40N65FL2WG is fabricated using ON Semiconductor's latest IGBT technology, which provides enhanced ruggedness and reliability. It is equipped with a robust and durable package that ensures long-term reliability even in harsh operating conditions. The device also features a maximum junction temperature of 150°C, which allows for a wider operating temperature range and enhances thermal management.

Applications

Thanks to its high efficiency and power handling capabilities, the NGTB40N65FL2WG is suitable for a variety of applications, including:

• AC and DC motor drives
• Renewable energy inverters
• Power factor correction circuits
• Switched-mode power supplies (SMPS)
• Welding equipment

ON Semiconductor's commitment to quality ensures that the NGTB40N65FL2WG IGBT provides designers with a reliable and high-performance solution for their power management challenges. With its combination of features, this IGBT is set to enhance the efficiency and reliability of power electronic systems worldwide.
