ON Semiconductor NLAS3799MNR2G: A High-Performance Analog Switch

The NLAS3799MNR2G is a state-of-the-art analog switch designed and manufactured by ON Semiconductor, a renowned leader in energy-efficient innovations. This switch is part of the high-performance, low-voltage series that offers a compact and efficient solution for routing analog signals in a wide range of applications, including portable devices, data acquisition systems, and communication devices.

Key Features and Benefits

• Low On-Resistance: The NLAS3799MNR2G features an exceptionally low on-resistance (Ron) typically around 0.5 Ohms, which ensures minimal signal distortion and power loss when the switch is in the ON state, providing a clear and efficient signal path.
• Wide Voltage Range: It operates over a broad voltage range from 1.65V to 5.5V, making it suitable for various applications that require different operating voltages, from battery-powered devices to industrial systems.
• Single Supply Operation: The ability to operate with a single power supply simplifies circuit design and reduces power requirements, which is critical for portable and low-power applications.
• Low Power Consumption: The device is optimized for low power consumption, with a quiescent current of less than 0.1 µA, which helps extend battery life in portable applications.
• High-Speed Switching: Fast switch times (ton = 12 ns, toff = 6 ns typical at 5V) allow the NLAS3799MNR2G to be used in applications that require high-speed signal routing without significant delay.
• ESD Protection: Enhanced electrostatic discharge (ESD) protection is provided on all pins to ensure device reliability and longevity in harsh environments.

Package and Environmental Compliance

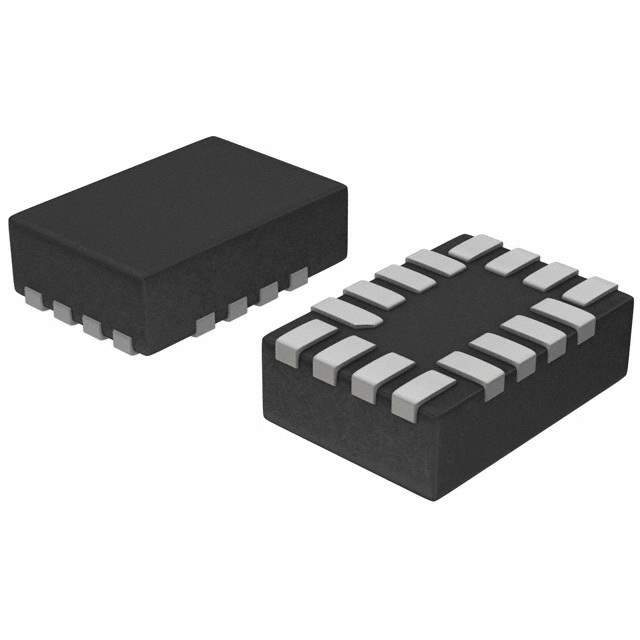

The NLAS3799MNR2G comes in a micro-miniature, thin dual flat no-lead (UDFN) package, which is designed to occupy minimal space on a printed circuit board (PCB) and is ideal for space-constrained applications. Additionally, the device is fully compliant with the RoHS directive, ensuring an environmentally friendly product that meets current regulatory standards for hazardous substances.

Applications

With its robust feature set, the NLAS3799MNR2G is suitable for a variety of applications, including:

• Audio and video signal routing
• Data acquisition systems
• Sample and hold circuits
• Communication systems
• Battery-powered and portable devices

The NLAS3799MNR2G is a versatile and reliable choice for designers looking for a high-performance analog switch that delivers efficiency, durability, and precision in their electronic designs.
