The NLAS4684FCTCG is a high-performance, dual single-pole double-throw (SPDT) analog switch from ON Semiconductor, designed for precision applications that require low-voltage operation and bidirectional signal control. With its compact footprint and advanced features, this switch is an ideal choice for a wide range of applications, including signal routing, data acquisition systems, and battery-powered devices.

Key Features:

• Low-Voltage Operation: The device operates from a single supply voltage ranging from 1.65V to 4.3V, making it suitable for portable and low-power applications.
• High Bandwidth: The NLAS4684FCTCG offers a wide bandwidth, ensuring minimal signal distortion and supporting high-speed data transmission.
• Low On-Resistance: The switch features low on-resistance (Ron) typically around 5 ohms, which reduces signal attenuation and power loss, improving overall efficiency.
• Low Crosstalk: Engineered to minimize crosstalk, the device ensures integrity of the signals being switched, which is critical in sensitive analog and mixed-signal environments.
• Break-Before-Make Switching: This feature prevents signal shorting by ensuring that the switch breaks the connection with one channel before making a connection with another channel.
• ESD Protection: The NLAS4684FCTCG is equipped with built-in ESD protection circuitry, safeguarding the device against electrostatic discharge events.

Applications:

• Audio and video signal routing
• Data acquisition systems
• Communication systems
• Portable and battery-powered devices
• Medical equipment

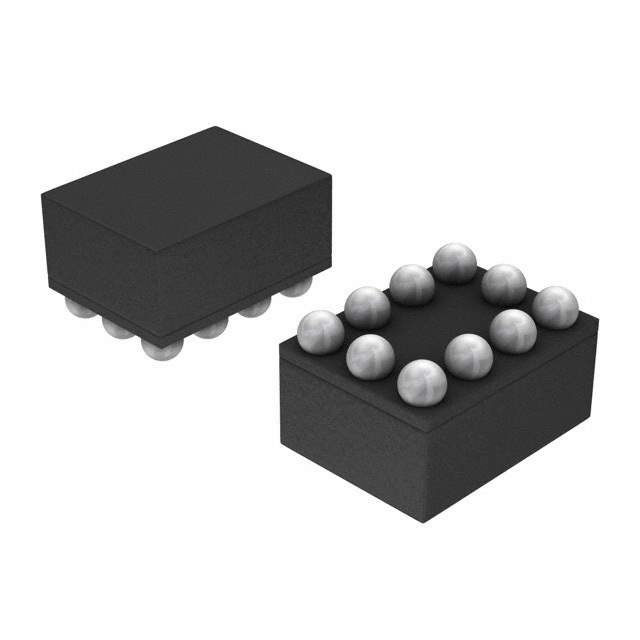

The NLAS4684FCTCG is offered in an ultra-small µDFN package, which is ideal for space-constrained applications. Its high level of integration and low power consumption make it a versatile solution that can significantly enhance the performance and efficiency of electronic systems. Whether you are designing consumer electronics or sophisticated industrial equipment, the NLAS4684FCTCG from ON Semiconductor is a reliable and effective choice for your analog switching needs.
