ON Semiconductor NLAS7213MUTBG: High-Performance Analog Switch

The ON Semiconductor NLAS7213MUTBG is a cutting-edge analog switch designed to deliver high performance in a compact form factor. This advanced switch is part of ON Semiconductor's portfolio of high-quality components, renowned for their reliability and efficiency. The NLAS7213MUTBG is particularly suited for applications that demand low on-resistance and high current handling capability.

Engineered with precision, the NLAS7213MUTBG features a single-pole double-throw (SPDT) configuration. It is capable of operating over a wide voltage range, from 1.65V to 5.5V, making it versatile for a variety of applications. This switch is designed to handle bidirectional analog and digital signals, which allows it to be used in multiplexing and demultiplexing applications, as well as signal gating.

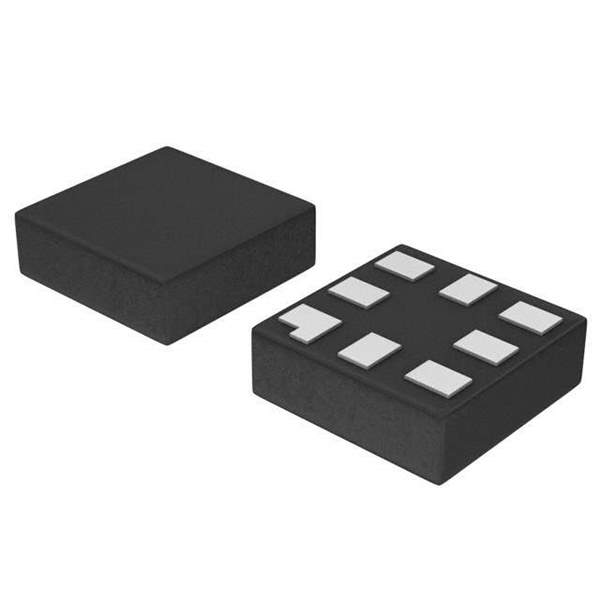

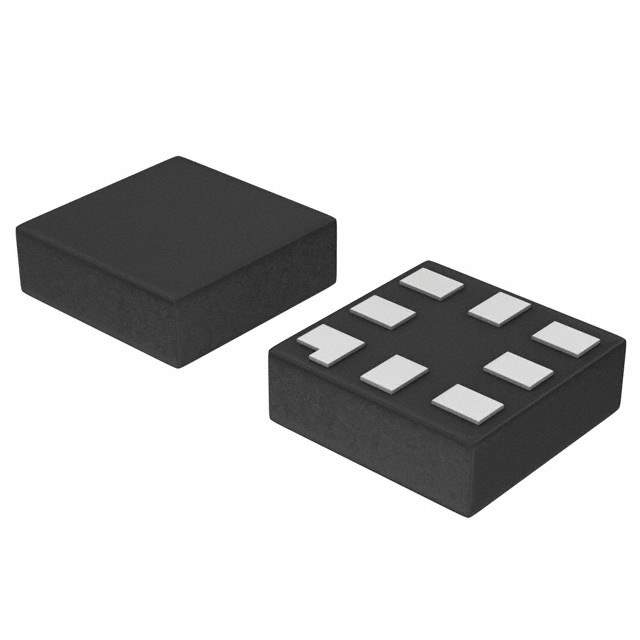

The NLAS7213MUTBG is housed in an ultra-small µDFN package, measuring just 1.8mm x 1.4mm, which is ideal for space-constrained applications. Despite its small size, it offers an impressive performance with a low on-resistance of typically 5Ω. This low on-resistance ensures minimal signal distortion and power loss, which is crucial for maintaining signal integrity in sensitive applications.

ON Semiconductor has equipped the NLAS7213MUTBG with an ESD tolerance of ±8kV (Human Body Model) and ±15kV (Air-Gap Discharge), providing robust protection against electrostatic discharge events. This feature enhances the durability of the switch and ensures a longer operational life in harsh environments.

The NLAS7213MUTBG is also characterized by its break-before-make switching action, which prevents signal overlap during channel transitioning. This is particularly important in applications where signal integrity is paramount. Additionally, the switch exhibits low crosstalk and off-isolation, further ensuring that signals are clean and free from interference.

In summary, the ON Semiconductor NLAS7213MUTBG analog switch is an excellent choice for designers looking for a high-performance, space-saving solution. With its low on-resistance, high ESD tolerance, and reliable performance, it is well-suited for a range of applications, including mobile devices, portable electronics, and communication systems.
