The NSS12100UW3TCG from ON Semiconductor is a high-performance, NPN bipolar transistor designed for use in a wide range of electronic applications. This versatile component is well-suited for linear and switching operations, making it an excellent choice for designers looking to enhance their circuit designs with reliable and efficient performance.

Key Features

• High Current Gain Bandwidth Product: The NSS12100UW3TCG offers a high fT of 100 MHz, which is ideal for amplification applications requiring good frequency response.
• Low Collector-Emitter Saturation Voltage: This transistor has a low V<sub>CE(sat) that ensures lower power dissipation during operation, contributing to energy efficiency in the final application.

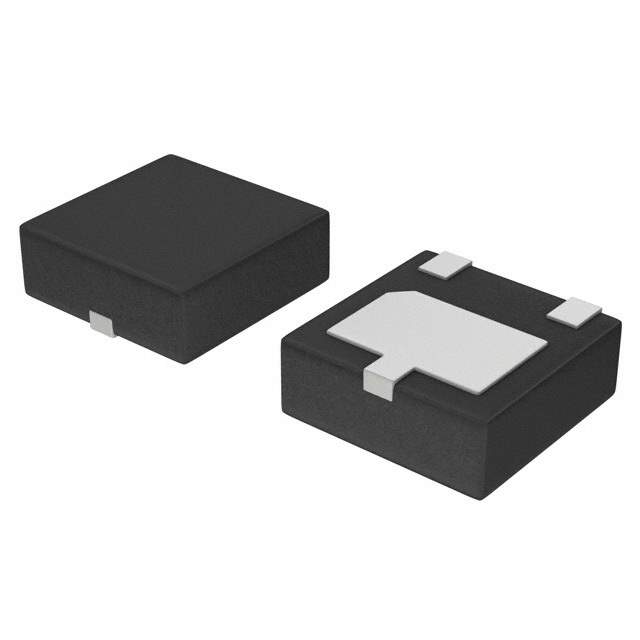

• Surface-Mount Package: Packaged in a space-saving SOT-323, the NSS12100UW3TCG is suitable for compact designs and is easy to integrate into automated PCB assembly processes.
• High Collector Current: With a continuous collector current (I<sub>C) rating of 100 mA, this transistor can handle a significant amount of current for its size.
• RoHS Compliant: The product meets the requirements of the Restriction of Hazardous Substances Directive, making it suitable for use in environmentally sensitive applications.

Applications

The NSS12100UW3TCG is designed to serve a multitude of applications, ranging from signal amplification to power management. Its robust performance characteristics make it ideal for:

• Audio amplifiers
• Switching circuits
• Driver stages in hi-fi systems
• Voltage regulation modules
• Power management in portable devices

Quality and Reliability

ON Semiconductor is known for its commitment to quality, and the NSS12100UW3TCG is no exception. This product is manufactured with rigorous quality control processes and is designed to meet high reliability standards, ensuring stable performance over a wide range of environmental conditions.

Whether you're designing consumer electronics, industrial control systems, or sophisticated audio equipment, the NSS12100UW3TCG offers the performance and reliability that ON Semiconductor customers have come to expect. Its combination of efficiency, compact form factor, and high-current capability makes it a smart choice for your next electronics project.
