The NUD3105LT1G from ON Semiconductor is a high-performance integrated load switch designed for a variety of applications. This compact, surface-mount device offers a convenient and efficient solution for controlling power distribution in electronic circuits. It is particularly well-suited for applications that require a controlled turn-on and high-side switching.

The NUD3105LT1G is built using advanced high-voltage process technology, which allows for a low on-resistance and a high continuous load current of up to 1.4A. Its low threshold voltage makes it compatible with various logic levels, ensuring versatility across different platforms and systems. Moreover, the device features an integrated current limiting function, which helps protect the load as well as the switch itself from excessive currents that could cause damage.

One of the key benefits of the NUD3105LT1G is its thermal shutdown feature, which provides additional protection by turning off the switch if the junction temperature exceeds a certain threshold. This helps prevent thermal runaway and ensures the longevity of both the switch and the overall system. Additionally, the device includes an open-drain diagnostic output that can be used to signal a fault condition, allowing for more sophisticated control schemes and system monitoring.

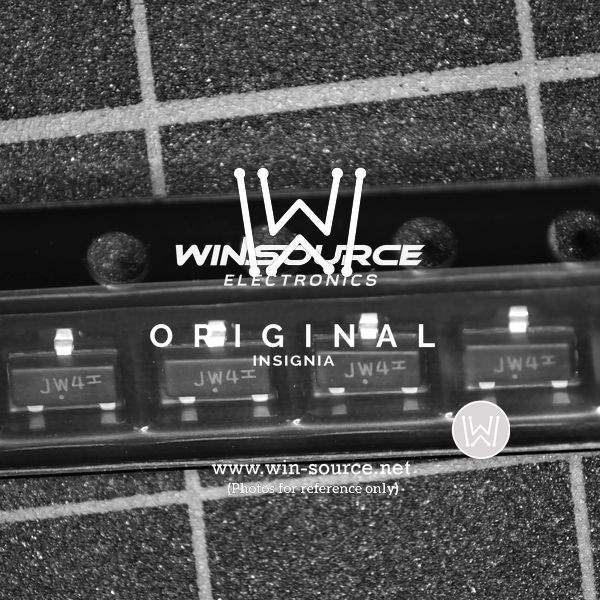

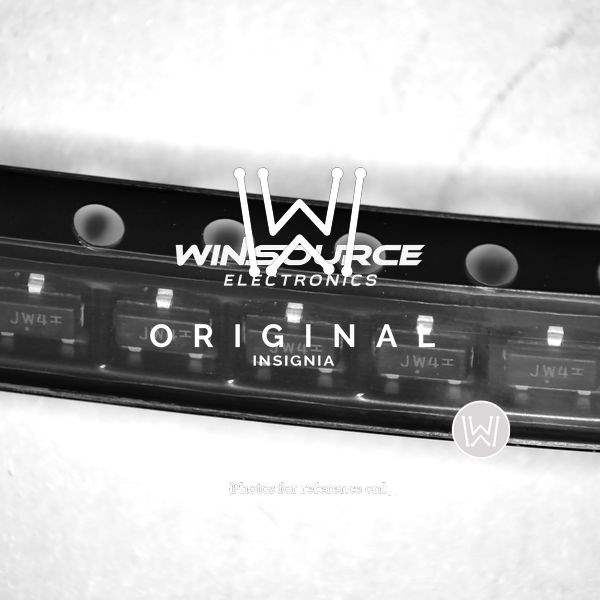

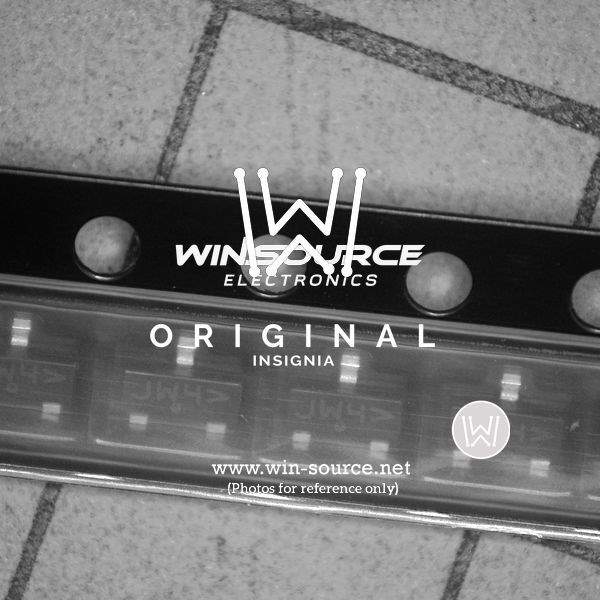

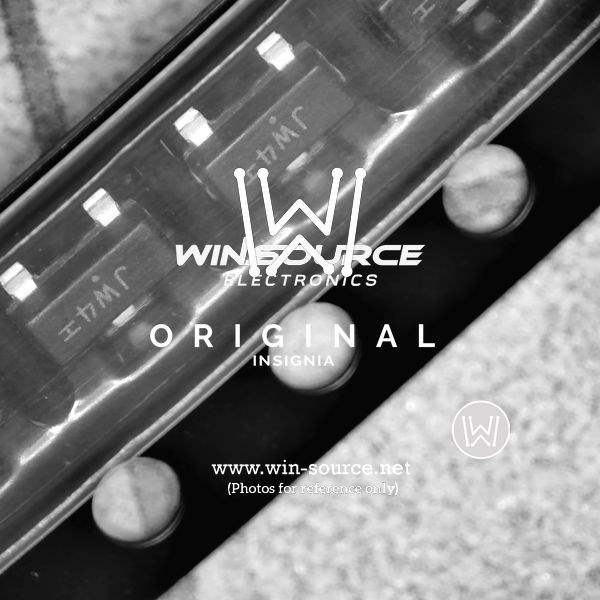

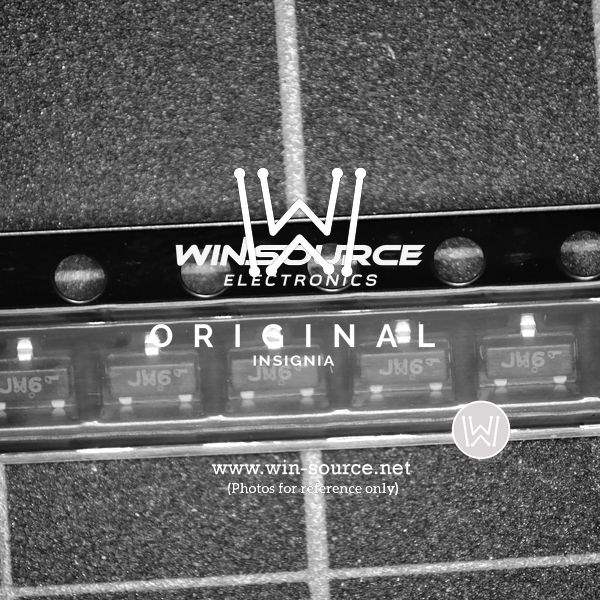

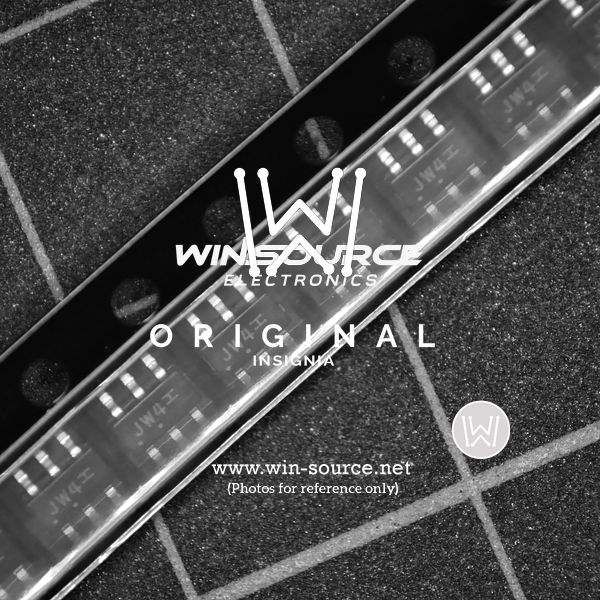

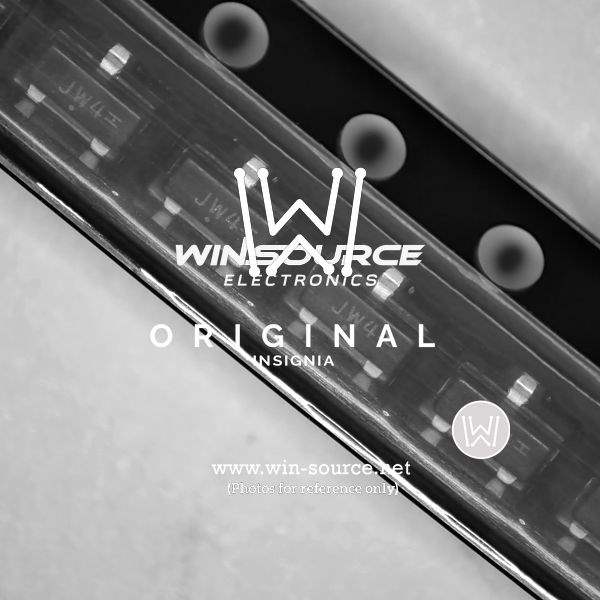

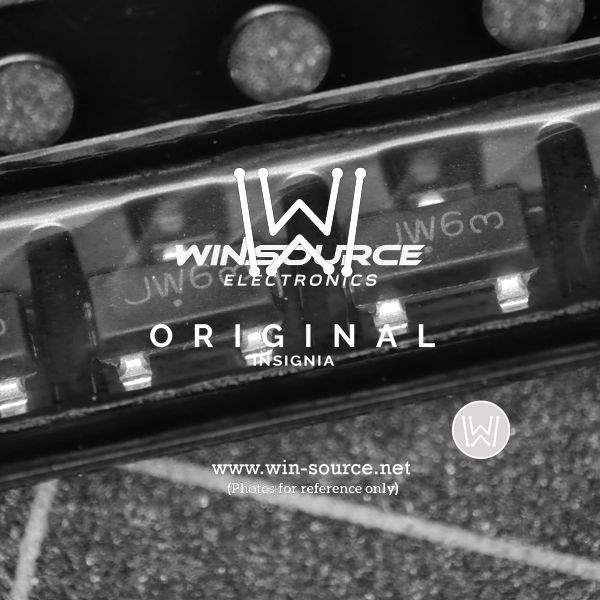

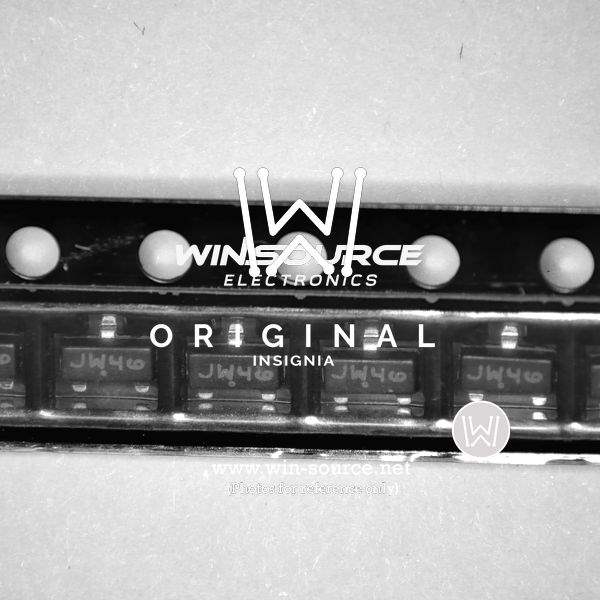

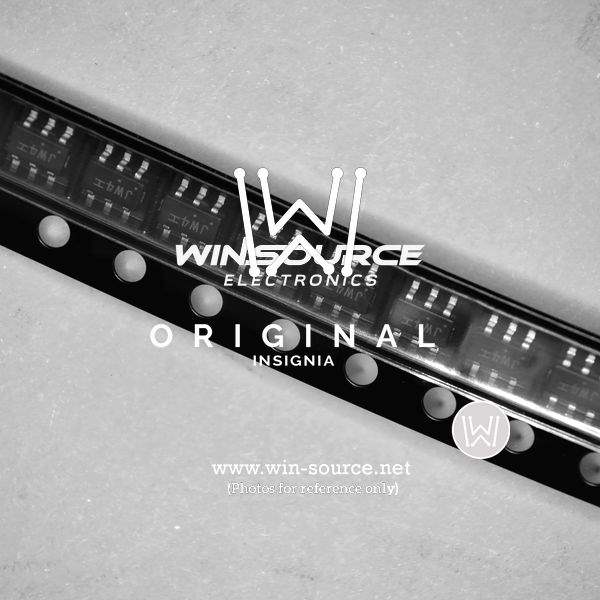

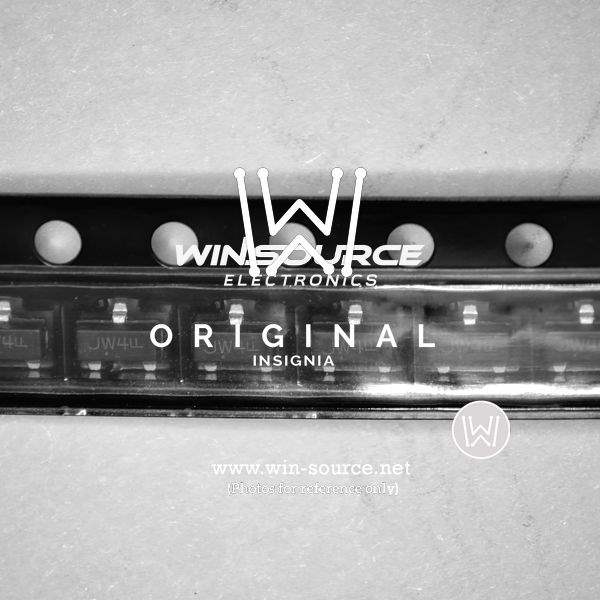

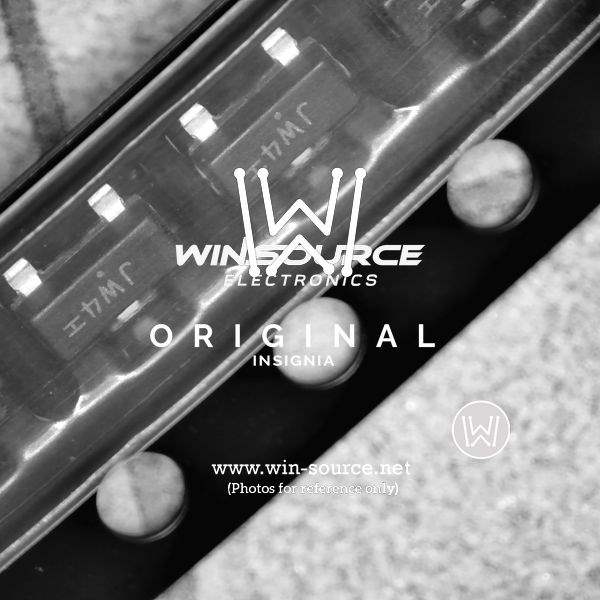

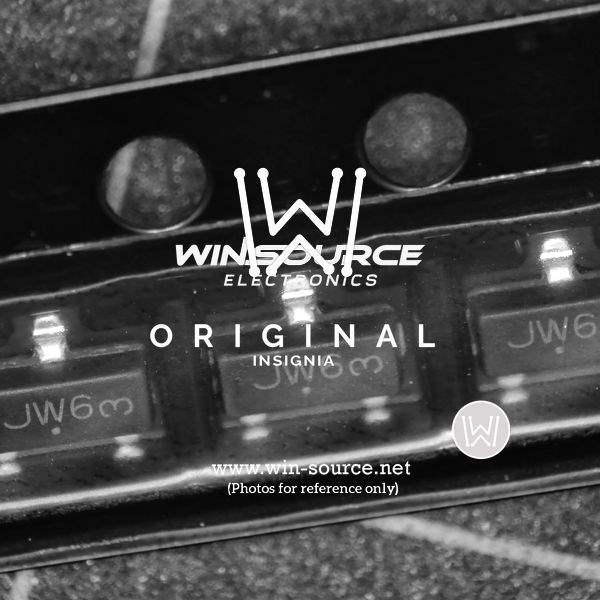

With its small footprint, the NUD3105LT1G is ideal for space-constrained applications. It comes in a SOT-23 package, which is widely used and easy to integrate into existing designs. This product is also characterized by its low quiescent current, contributing to energy efficiency in battery-powered devices.

Whether you're designing consumer electronics, automotive modules, or industrial controls, the NUD3105LT1G from ON Semiconductor is a reliable choice for your high-side load switching needs. Its robust design and protective features ensure that it can handle the demands of a wide range of applications while maintaining performance and safety.
