ON Semiconductor SB11-04HP-TR-E Product Overview

The SB11-04HP-TR-E is a high-performance Schottky Barrier Diode designed and manufactured by ON Semiconductor, a leading provider of semiconductor-based solutions. This diode is well-suited for a variety of applications, including high-frequency rectification and freewheeling in power supplies, inverters, converters, and other energy-efficient devices.

With its low forward voltage drop and high current capability, the SB11-04HP-TR-E ensures minimal power loss and heat dissipation, making it an excellent choice for power-sensitive applications. The device is capable of conducting up to 1 A of continuous forward current (I<sub>F), with a maximum repetitive peak reverse voltage (V<sub>RRM) of 40 V, which provides a good balance between forward conduction efficiency and reverse leakage protection.

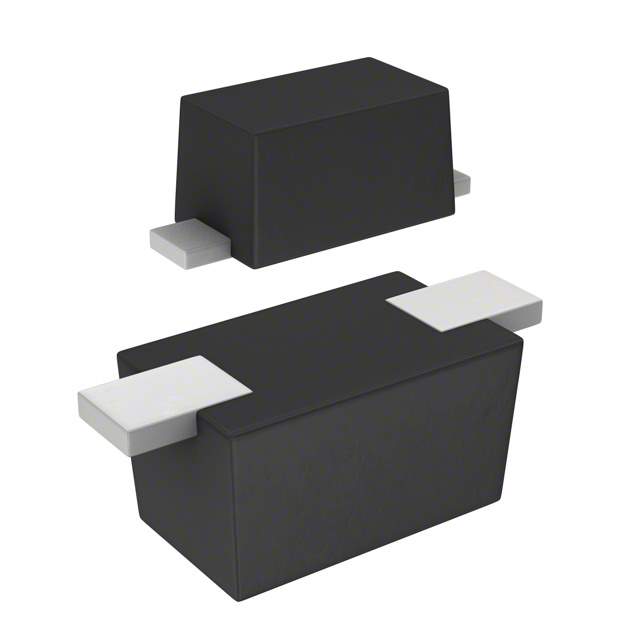

This Schottky diode comes in a compact, surface-mount SOD-123FL package, which is designed to optimize board space in densely packed PCB layouts. The package is also RoHS compliant and halogen-free, ensuring that it meets the latest environmental standards for electronic components.

The SB11-04HP-TR-E features a guard ring for enhanced ruggedness and long-term reliability. This guard ring design provides protection against excessive voltage spikes and increases the overall ruggedness of the diode, making it more resilient in harsh electrical environments.

ON Semiconductor has designed the SB11-04HP-TR-E with an operating junction temperature range of -55°C to +150°C, which allows it to perform reliably in a wide range of thermal conditions. This makes it suitable for use in industrial, automotive, and consumer electronics where temperature fluctuations are common.

The device is provided in tape and reel packaging, denoted by the "TR" suffix in the part number, which facilitates automated pick-and-place assembly processes, thereby reducing manufacturing costs and improving production efficiency.

In summary, the SB11-04HP-TR-E Schottky Barrier Diode from ON Semiconductor is a robust, efficient, and space-saving solution for designers looking to enhance the performance and reliability of their power management systems.
