ON Semiconductor SCH2806-TL-E MOSFET

The SCH2806-TL-E from ON Semiconductor is a high-performance, P-Channel MOSFET that is designed to deliver efficient power management and control in a wide range of electronic applications. This MOSFET is part of ON Semiconductor's extensive portfolio of semiconductor components known for their reliability and cutting-edge technology.

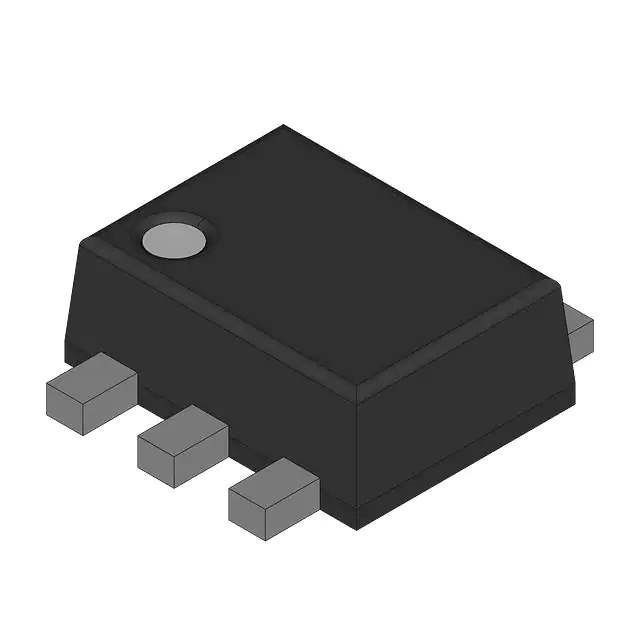

With its compact and surface-mountable package, the SCH2806-TL-E is particularly well-suited for space-constrained applications. The device is housed in a 6-pin SuperSOT™-6 package, which not only minimizes the footprint on the PCB but also ensures enhanced thermal performance due to its low on-resistance.

The SCH2806-TL-E boasts an impressive continuous drain current (ID) of -6 A, allowing it to handle significant power for its size. The device operates at a gate-source voltage (VGS) of ±8 V, and features a drain-source voltage (VDS) of -30 V, making it a robust choice for various circuit designs. Its low threshold voltage ensures that it can be driven at lower gate voltages, increasing its versatility in low-voltage applications.

ON Semiconductor has equipped the SCH2806-TL-E with advanced features such as fast switching speed and a low gate charge, which contribute to reduced switching losses and improved overall efficiency. This is particularly beneficial in applications such as DC/DC converters, load switches, and power management circuits where efficiency is paramount.

The device also includes built-in ESD protection, safeguarding it against electrostatic discharges that can occur during handling or operation, thus enhancing its durability and lifespan. This feature is essential for maintaining the integrity of the device in environments where ESD events are more likely to happen.

In summary, the SCH2806-TL-E P-Channel MOSFET from ON Semiconductor is an excellent choice for designers looking for a reliable, high-performance power management solution. Its compact form factor, robust electrical characteristics, and advanced features make it an ideal component for a range of applications, including portable electronics, power supplies, and other power-intensive products.
